Front Bumper Lower Impact Bar Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

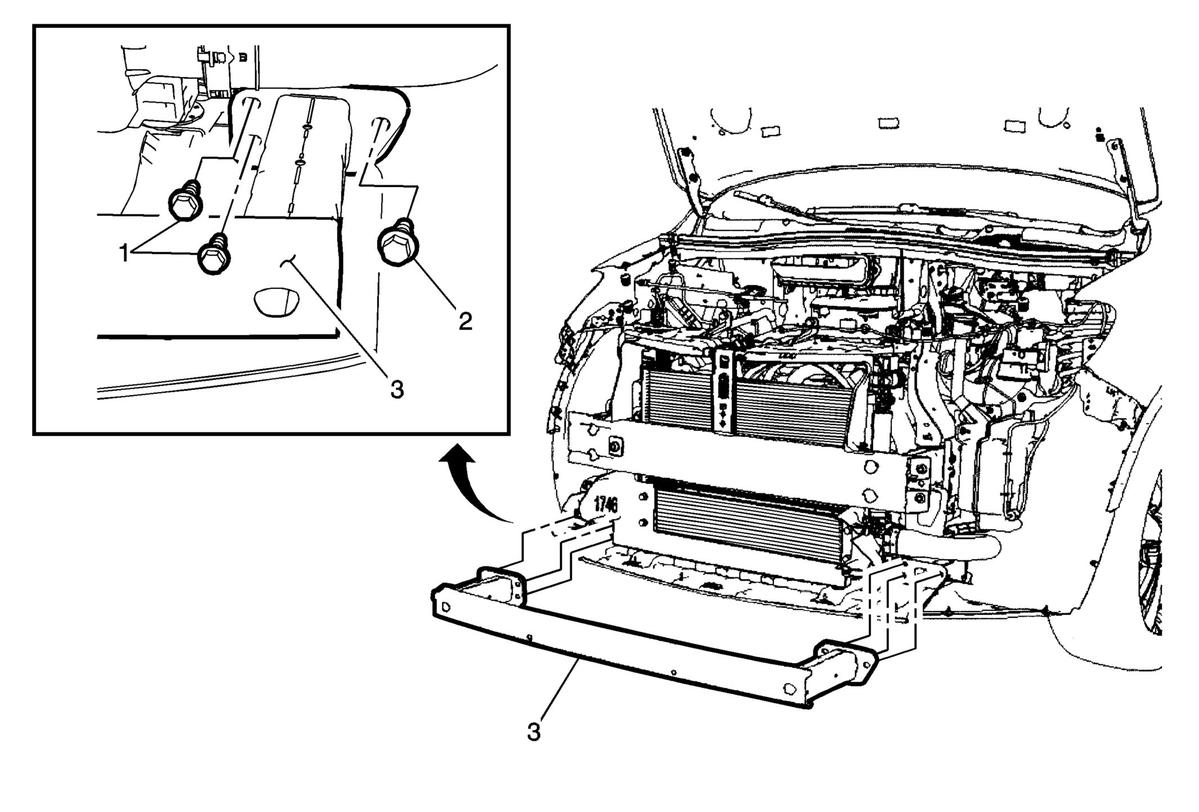

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia energy lower absorber. Refer to Front Bumper Fascia Energy Lower Absorber Replacement . |
|
| 1 | Front Bumper Lower Impact Bar Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Front Bumper Lower Impact Bar Bolt Outer (Qty 2) Tighten 58 N.m (43 lb ft) |
| 3 | Front Bumper Lower Impact Bar |
