Radiator Upper Bracket Replacement (LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

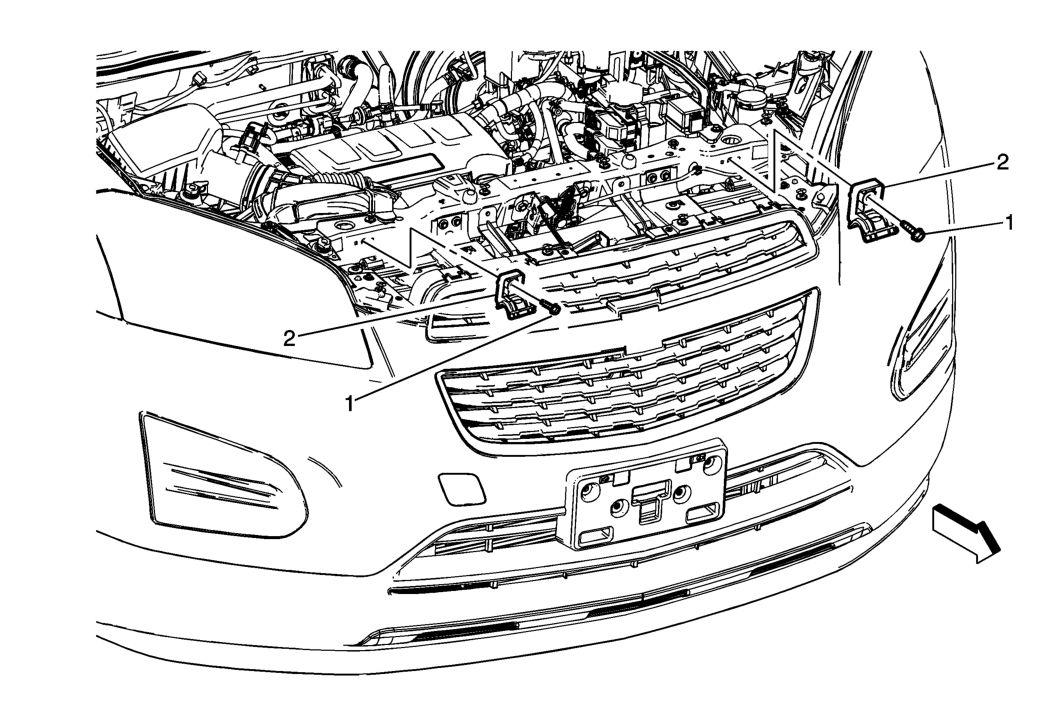

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement . |
|
| 1 | Radiator Upper Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 18 N.m (13 lb ft) |
| 2 | Radiator Upper Bracket (Qty: 2) |
