Front Bumper Fascia Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

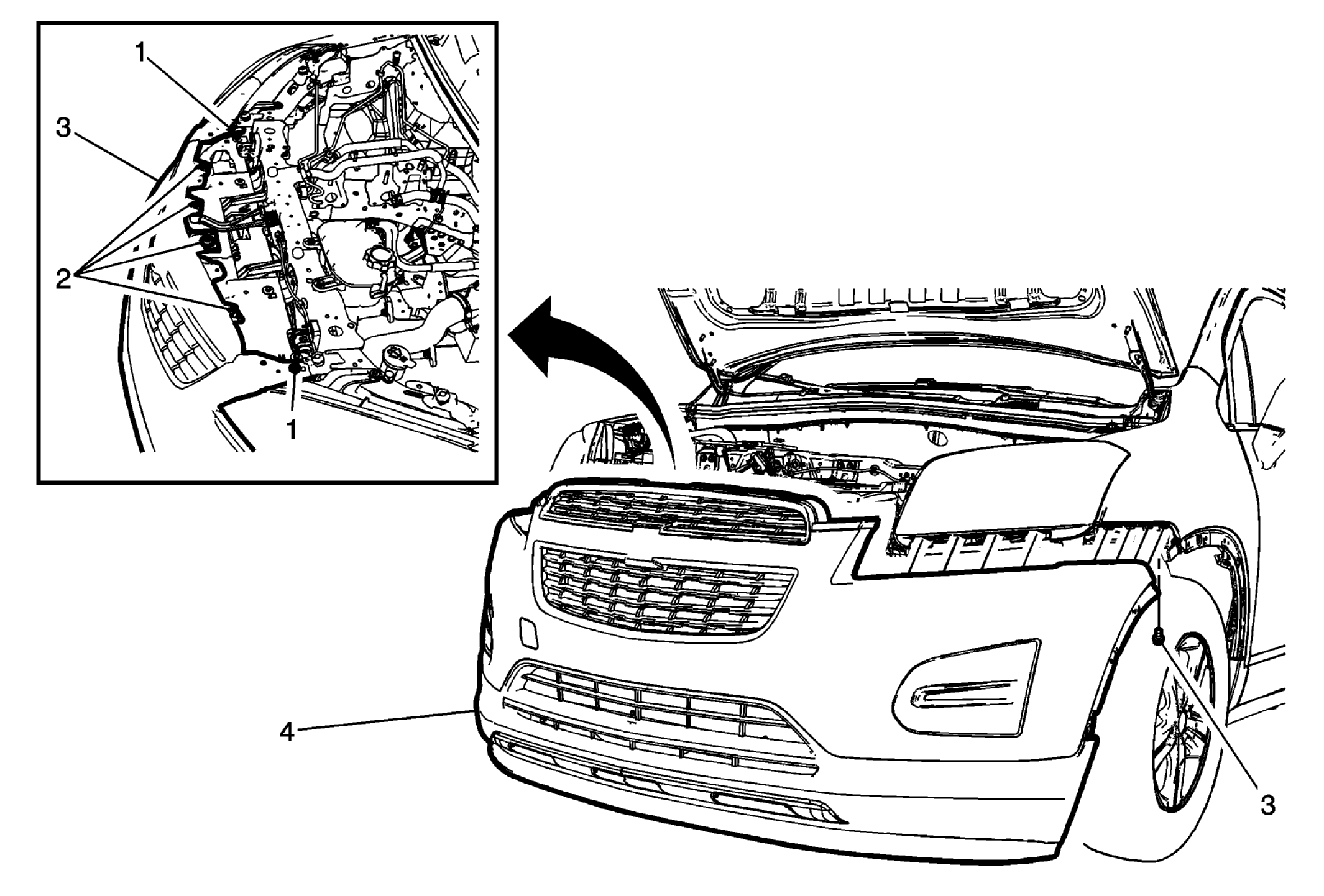

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement .
- Remove the front wheelhouse front liners. Refer to Front Wheelhouse Liner Replacement (Trax)
.
- Remove the front fender wheel opening molding. Refer to Front Fender Wheel Opening Molding Replacement
.
- Remove the front bumper fascia opening lower cover front edge retainers. Refer to Front Bumper Fascia Opening Lower Cover Replacement (Trax) .
|
| 1 |
Headlamp Screw (Qty: 2)
Tighten
2.5 N.m (22 lb in) |
| 2 |
Front Bumper Fascia Grille Bolt (Qty: 4)
Tighten
9 N.m (80 lb in) |
| 3 |
Front Bumper Fascia Guide Bolt (Qty 2)
Tighten
2.5 N.m (22 lb in) |
| 4 |
Front Bumper Fascia Procedure
- Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.
- Disconnect any electrical connectors.
- Transfer components as necessary.
|
