Engine Coolant Temperature Sensor Replacement (Radiator)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

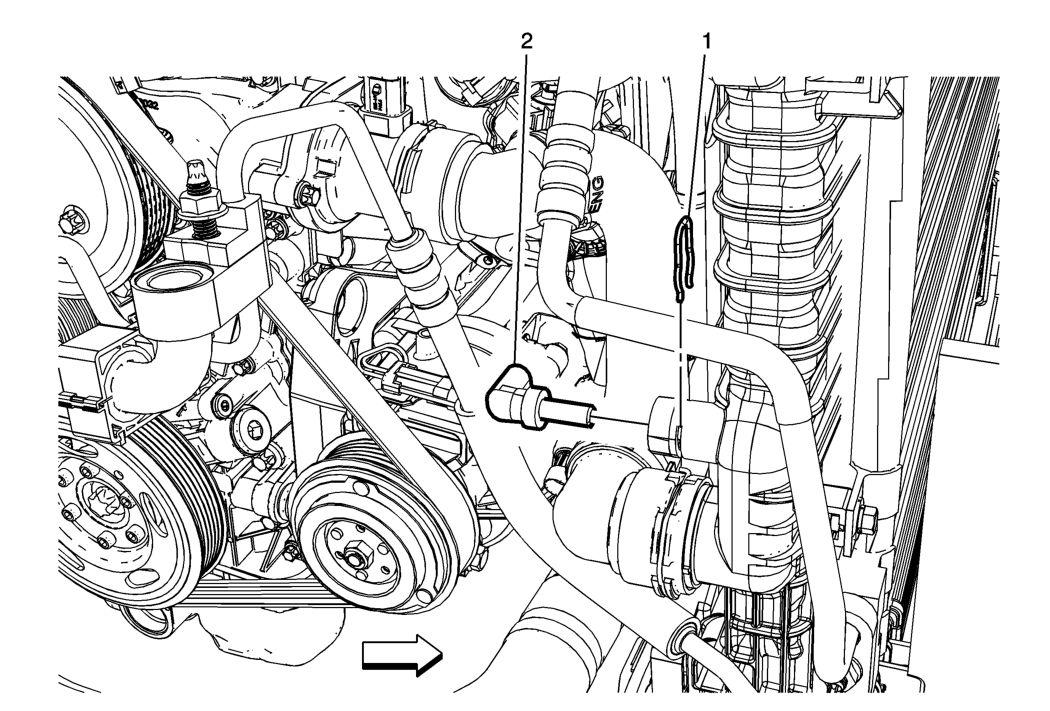

Fig 1: Engine Coolant Temperature Sensor (Radiator)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Procedure Disconnect the engine coolant temperature sensor electrical connector.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Engine Coolant Temperature Sensor Retainer

Engine Coolant Temperature Sensor
Procedure
Disconnect the engine coolant temperature sensor electrical connector.
