Radiator Air Lower Baffle and Deflector Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

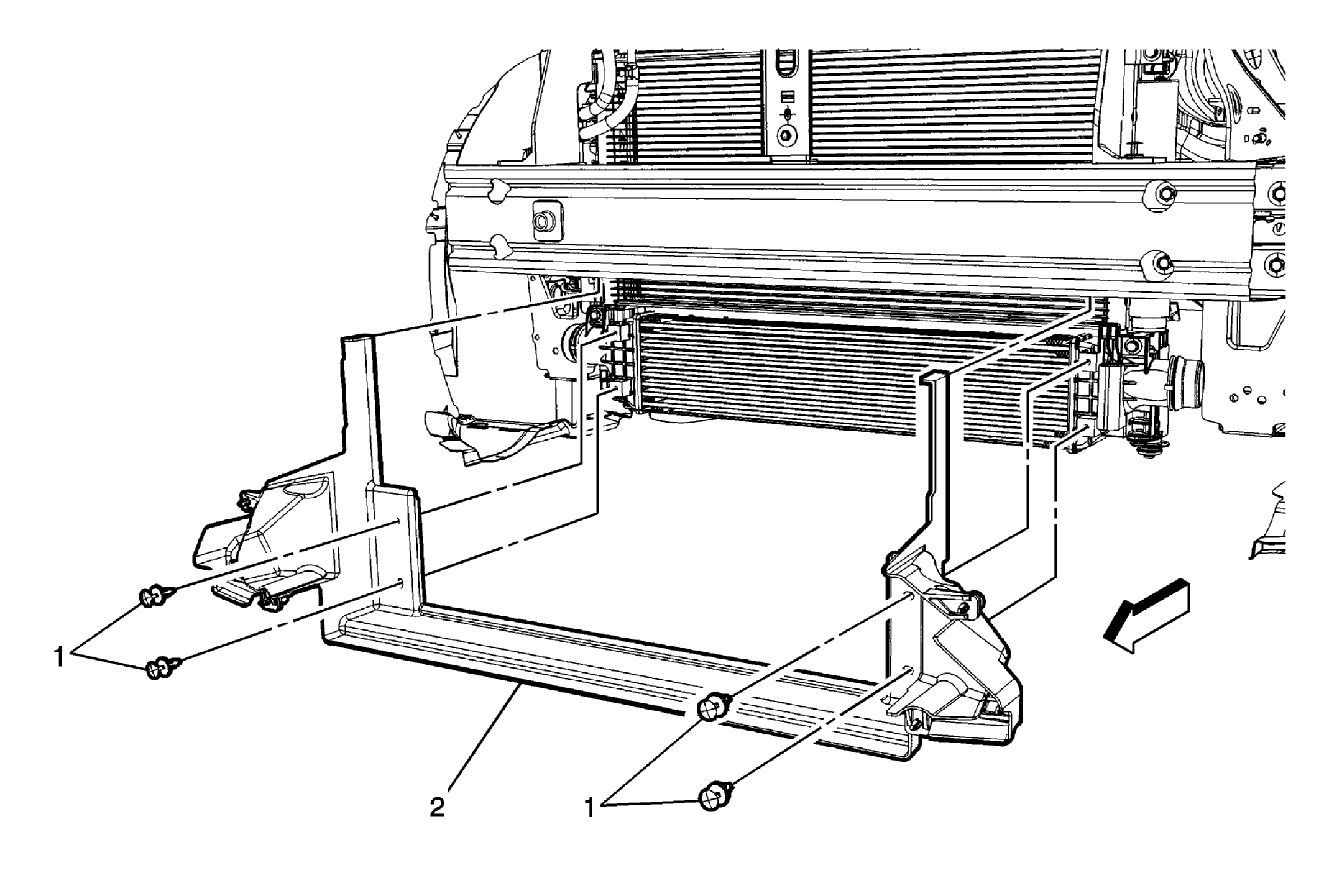

Fig 1: Radiator Air Lower Baffle and Deflector (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) . Remove the front bumper lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Trax) .
1	Radiator Air Lower Baffle and Deflector Push Pin Retainers (Qty: 4)
2	Radiator Air Lower Baffle and Deflector Assembly

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
Remove the front bumper lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Trax) .

Radiator Air Lower Baffle and Deflector Push Pin Retainers (Qty: 4)

Radiator Air Lower Baffle and Deflector Assembly
