Charge Air Cooler Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

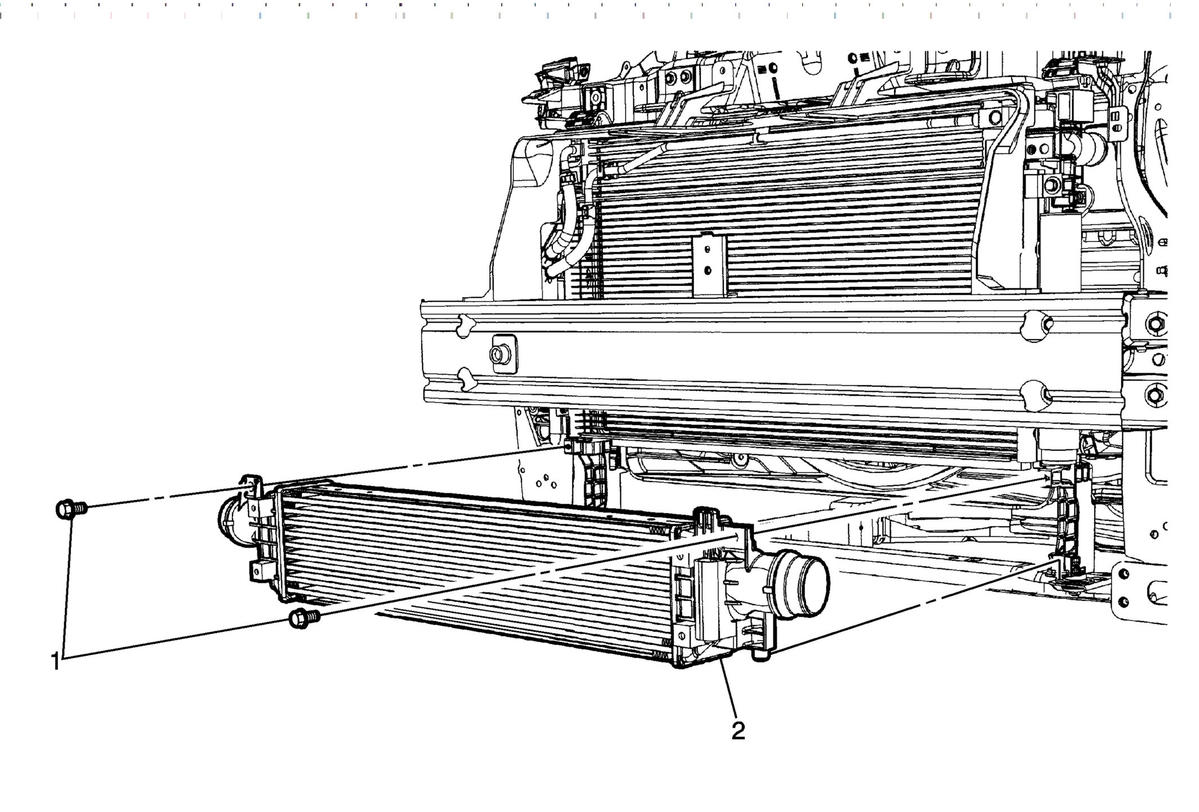

Fig 1: Charge Air Cooler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) . Remove the charge air cooler inlet air hose from the charge air cooler. Refer to Charge Air Cooler Inlet Air Hose Replacement . Remove the charge air cooler outlet air hose from the charge air cooler. Refer to Charge Air Cooler Outlet Air Hose Replacement . Remove the lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Trax) . Remove the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement (2H0)Radiator Air Lower Baffle and Deflector Replacement (LUJ, LUV) .
1	Charge Air Cooler Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Cooler

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
Remove the charge air cooler inlet air hose from the charge air cooler. Refer to Charge Air Cooler Inlet Air Hose Replacement .
Remove the charge air cooler outlet air hose from the charge air cooler. Refer to Charge Air Cooler Outlet Air Hose Replacement .
Remove the lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Trax) .
Remove the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement (2H0)Radiator Air Lower Baffle and Deflector Replacement (LUJ, LUV) .

Charge Air Cooler Fasteners (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Charge Air Cooler
