Radiator Air Upper Baffle and Deflector Replacement (LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

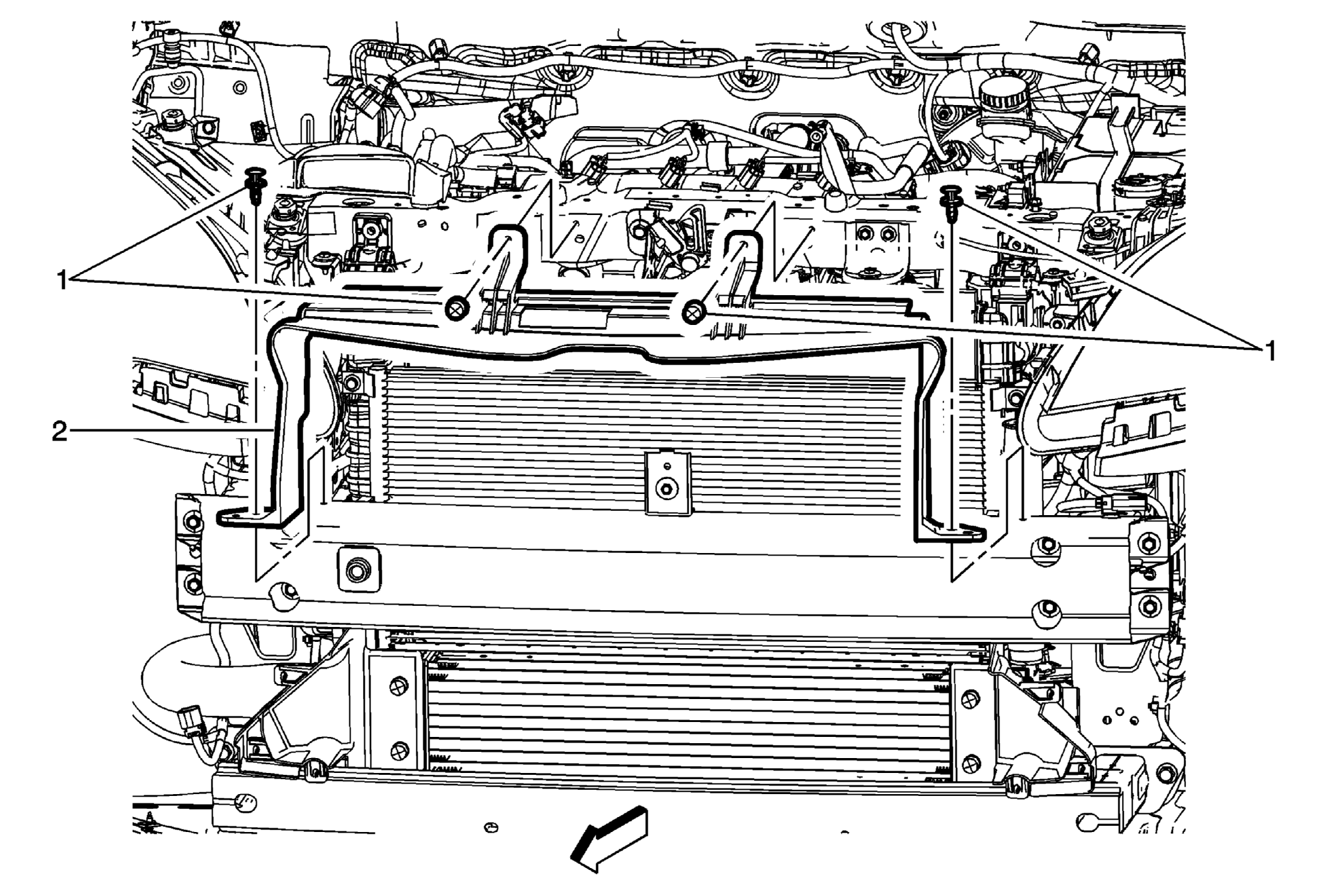

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement (Trax) . |
|
| 1 | Radiator Air Upper Baffle and Deflector Push Pin Retainers (Qty: 4) |
| 2 | Radiator Air Upper Baffle and Deflector Assembly |
