Installing the cylinder head

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder head screws

Fig 1: Cylinder Head Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Heavy component .
Heavy components can lead to injury or damage .

Remove and install heavy components with the aid of another person/other persons.

NOTE: RISK OF DAMAGE
Damage to threads .
Fluids in the threaded hole can damage the thread if screws in it are tightened .

Dry threaded holes (e.g. using compressed air).

NOTE: TECHNICAL INFORMATION
Do not remove screw coating.

NOTE: TECHNICAL INFORMATION
When replacing the cylinder head: The complete valve timing and the Valvetronic servomotor are already pre-assembled for new cylinder heads.

NOTE: RISK OF DAMAGE
Damage to guide rails .
The application of great force can damage the guide rails of the timing chain .

When removing and installing the cylinder head, make sure that the cylinder head does not damage the guide rail.

Courtesy of BMW OF NORTH AMERICA, INC.

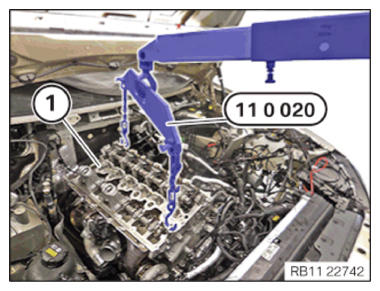

Insert, position and install the cylinder head (1) and exhaust turbocharger with the help of a support person, the workshop crane and special tool 0 490 567 (11 0 020) .
Ensure that the guide rails of the timing chain are not damaged.
Insert and install washer (2) .
Replace the cylinder head bolts (1) .
Parts: Cylinder head bolts
Do not wash off the coating (1) of the cylinder head bolts .
Lightly oil contact surfaces of cylinder head bolt screw heads.
There must be no coolant, water or engine oil in the threaded holes of the crankcase.
Guide in and install cylinder head bolts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

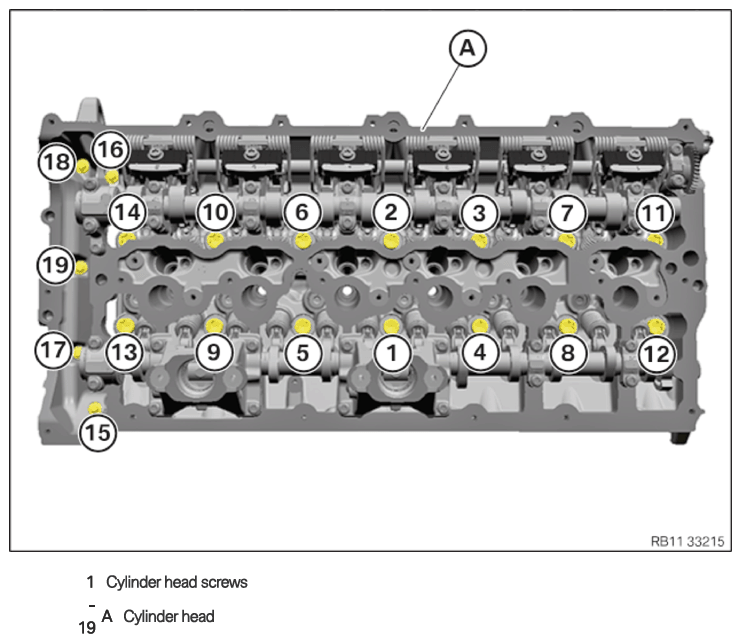

Screw in the cylinder head bolts in the sequence (1) to (14) .
Tighten cylinder head bolts with special tool 0 495 747 (11 8 580) and 0 490 504 (00 9 120) in the order (1) to (14) .

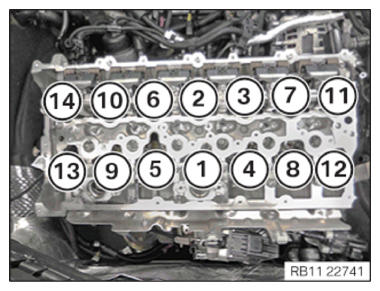

Fig 2: Cylinder Head Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Cylinder head to crankcase
M11X188 13.9 Observe tightening sequence! Fit new cylinder head bolts.	1. Joining torque 2. Angle of rotation 3. Angle of rotation	50 Nm 180° 180°

Replace cylinder head bolts (1) to (5) .
Parts: Cylinder head bolts
Make sure that there is no coolant, water or engine oil in the threaded holes of the timing case cover.

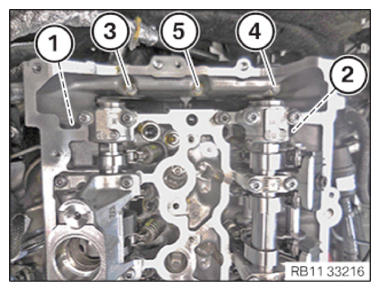

Screw in cylinder head bolts (1) to (5) .
Tighten the cylinder head bolts in the sequence (1) to (5) .

TIGHTENING TORQUE SPECIFICATIONS

Cylinder head bolt to timing case cover
M8x40 Replace screws.	Tightening torque	19 Nm

Fig 3: Cylinder Head Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

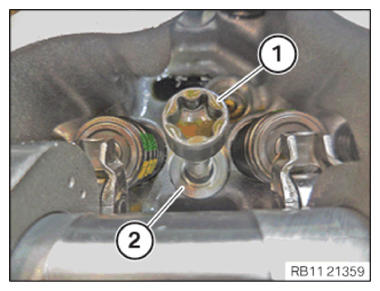

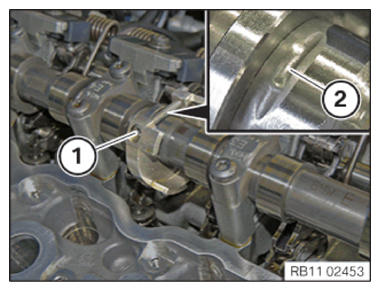

Feed in and position camshaft sensor wheel (1) on the intake camshaft (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

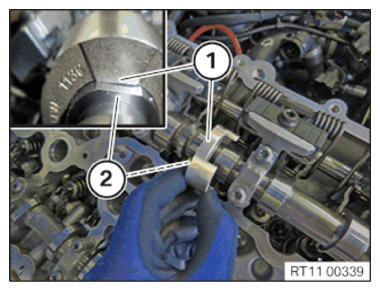

Rotate the intake camshaft, if necessary, in the position shown.
The recess (2) must point upward.
Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Camshaft sensor wheel to intake camshaft
M4x35	Tightening Torque	4.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

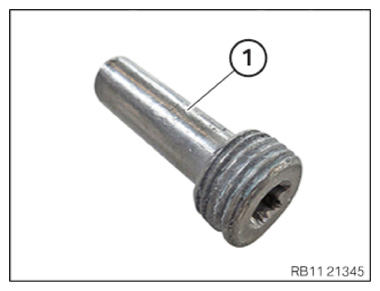

Replace bearing journal (1) .
Parts: Bearing journal

Courtesy of BMW OF NORTH AMERICA, INC.

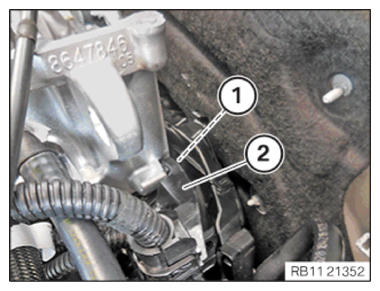

Feed in and install bearing journal (1) on the guide rail (2) .
Tighten the bearing journals (1) .

TIGHTENING TORQUE SPECIFICATIONS

Bearing journal to cylinder head
Bearing journal Replace the bearing journal!	Tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

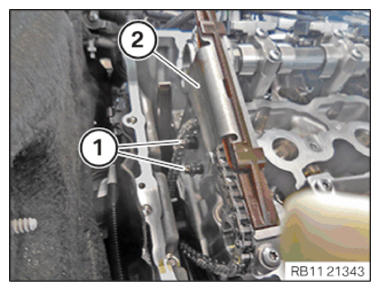

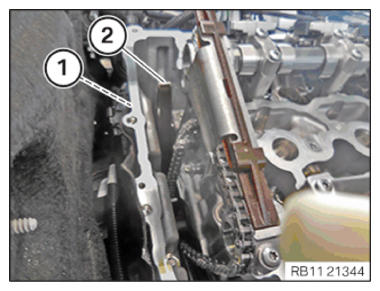

Insert slide rail (2) and install.
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Sliding rail to cylinder head
M6x16	Tightening Torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

Guide in and install the wiring harness section (2) for sensor system 1.
Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

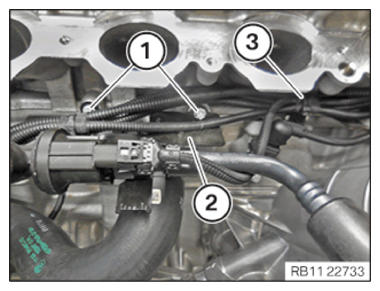

Guide in and install the transmission wiring harness (2) on the wiring harness section (3) for sensor system 1.
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

Feed in and position holder (2) .
Tighten the screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Holder for the tank vent valve on crankcase
M6X16	tightening torque	8 Nm

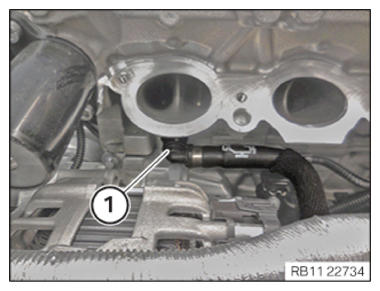

Secure clamps (3) .
Connect and lock coolant line (1) .
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

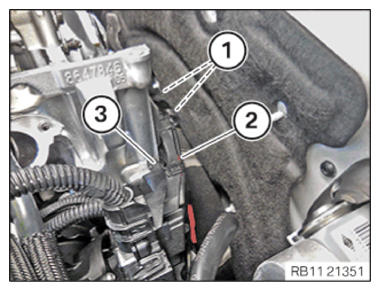

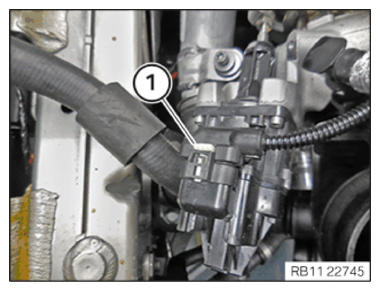

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

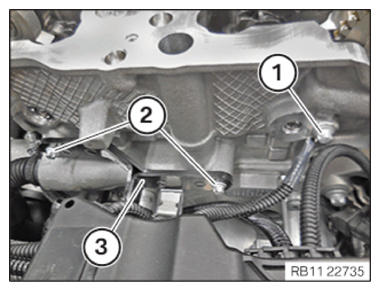

Feed in and position holder (3) .
Tighten the screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Auxiliary coolant pump holder to cylinder head
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Grounding cable on cylinder head
M6 x 16	Tightening Torque	8 Nm

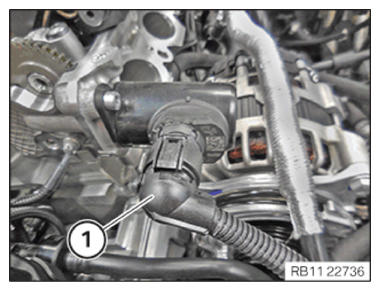

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

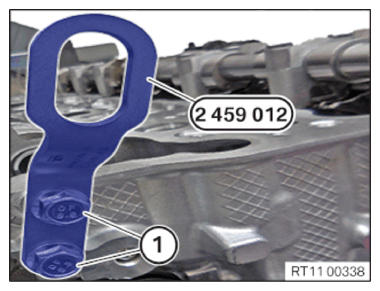

Unscrew the bolts (1) of the special tool 2 459 012 .
Feed out the special tool 2 459 012 at the cylinder head and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

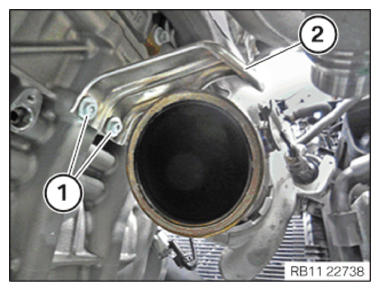

Feed in and position holder (2) .
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Holder for the heat shield on crankcase
M6X16	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
