Installing exhaust camshaft adjuster
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The figure shows the rear of the engine.

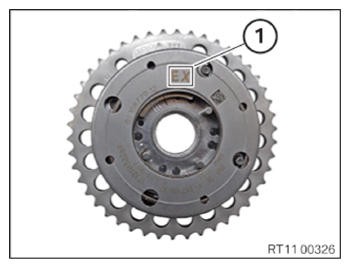

- Lay out the exhaust camshaft adjuster (1)
marked with EX.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

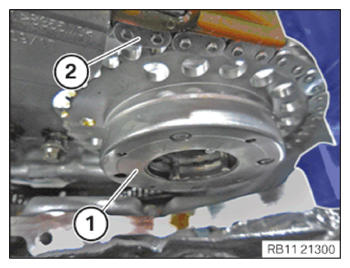

- Feed in exhaust camshaft adjuster (1)
in the timing chain (2)
and position on the exhaust camshaft.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
