Install the holder of the positive battery cable

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

Feed in bracket (2) of positive battery cable and position.
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Holder, positive battery cable to cylinder head cover
Self-tapping plastic screw 6 x 18	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

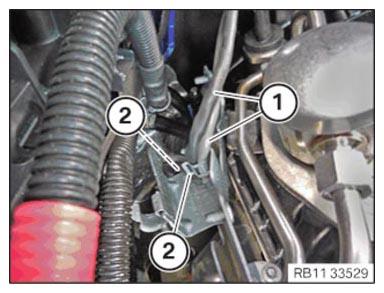

Secure cable (1) in clamps (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

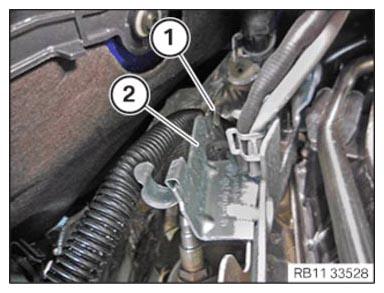

Secure clamp (1) to holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

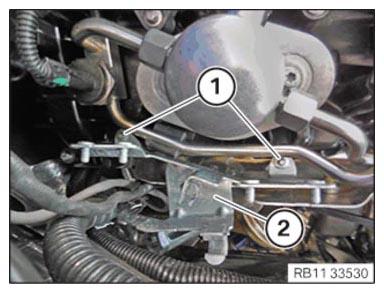

Secure the clamps (1) to holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
