Partially installing the coolant expansion tank of the high-temperature coolant circuit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

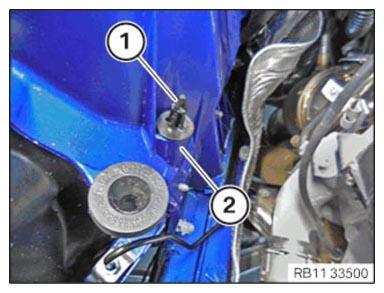

- Check the expanding pin (1)
at the shock tower (2)
for damage and if necessary, replace the expanding pin (1)
.

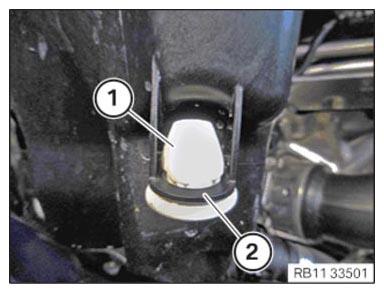

- Check the rubber mount (1) for damage and replace if necessary.
- Check the rubber mount (1) for a correct fit on the expansion tank (2) .

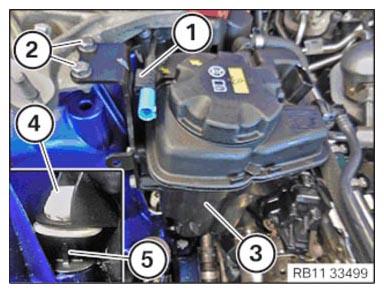

- Feed in and install the coolant expansion tank (3)
.
The rubber mount (4) must engage audibly at the expanding pin (5) .
- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant expansion tank to strut brace ring | ||
| Hexagon screw M6x16 |
Tightening torque | 8 Nm |
- Secure the clamp (1) .

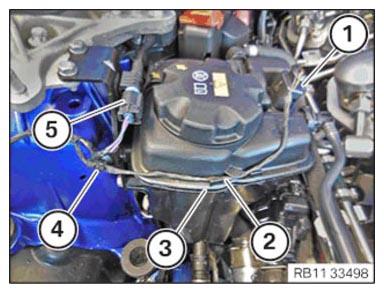

- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Attach the cable (2) to the expansion tank (3) .
- Secure the clamp (4) .
- Connect connectors (5) and lock.
The connector (5) must engage audibly.
