Installing both actuators

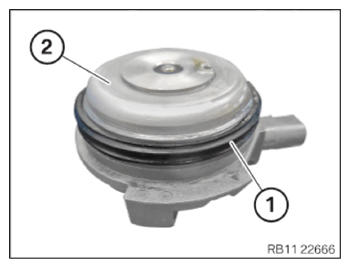

• Check the seal (1) for damage and replace actuator (2) if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The figure shows the rear of the engine.
• Position both actuators.

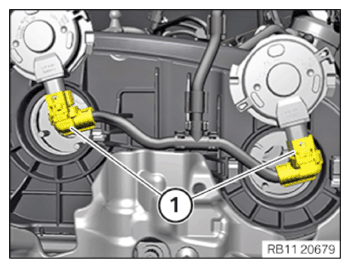

• Connect and lock both connectors (1).
• Ensure that the connectors (1) engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The figure shows the rear of the engine.

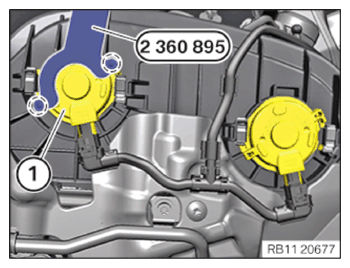

• Position special tool 2 360 895  correctly on the actuator (1) of the exhaust side.

  Courtesy of BMW OF NORTH AMERICA, INC.

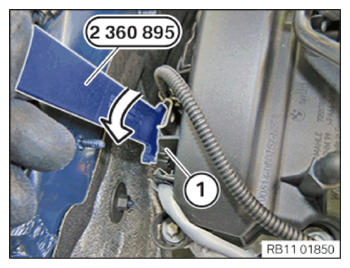

• Position the actuator (1) on the exhaust side and use the special tool 2 360 895  to turn in the arrow direction until the stops rest on the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The figure shows the rear of the engine.

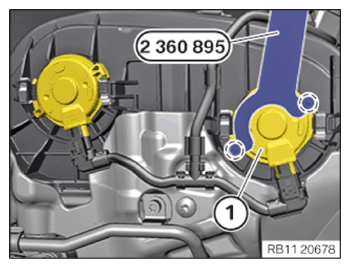

• Position special tool 2 360 895  correctly on the actuator (1) of the intake side.

  Courtesy of BMW OF NORTH AMERICA, INC.

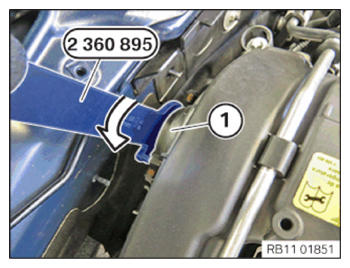

• Position the actuator (1) on the intake side and use the special tool 2 360 895  to turn in the arrow direction until the stops rest on the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CENTER BULKHEAD LOWER PART .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
