Installing the exhaust turbocharger heat shield for cylinders 1 to 3
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

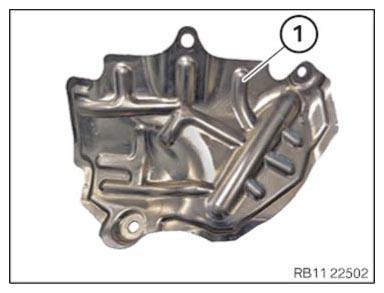

- Check the heat shield (1)
for damage, if necessary replace the heat shield (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

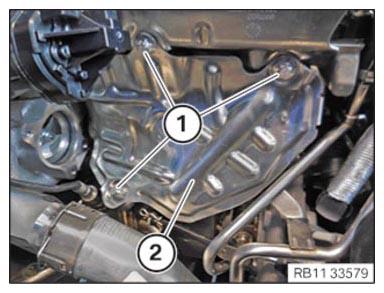

- Feed in and install the heat shield (2)
.
- Tighten the screws (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Heat shield to cylinder head |
M8X17.5
Replace screws. |
tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
