Installing the intake adjuster
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The figure shows the rear of the engine.

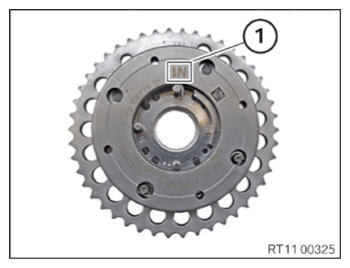

- Lay out the intake adjuster (1)
marked with IN.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

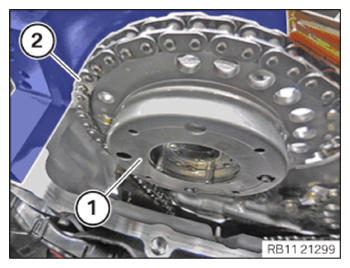

- Feed in intake adjuster (1)
in the timing chain (2)
and position on the intake camshaft.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
