Remove all special tools
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

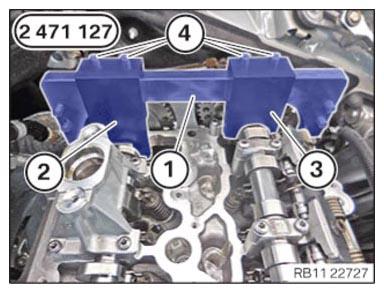

- Release the screws (4) from the set of special tools 2 471 127.
- Guide out the setting gauge 0.5° (2) from the special tool 2 471 127 between the exhaust camshaft and the basic carrier (1) and remove.
- Guide out the setting gauge 0.7° (3)
from the special tool 2 471 127
between the intake camshaft and the basic carrier (1)
and remove.

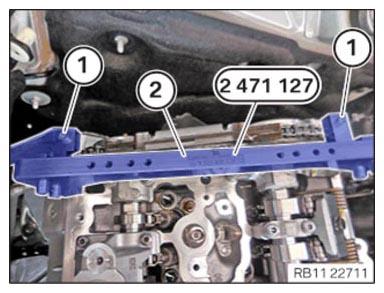

- Release the screws (1) from the set of special tools 2 471 127 .
- Guide out the basic carrier (2) from the special tool 2 471 127 and remove.

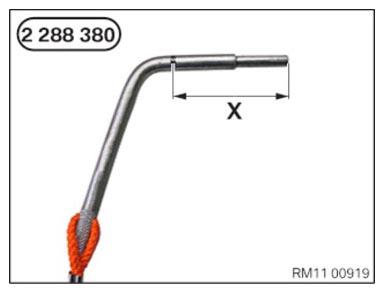

- Guide the special tool 2 288 380
out and remove.

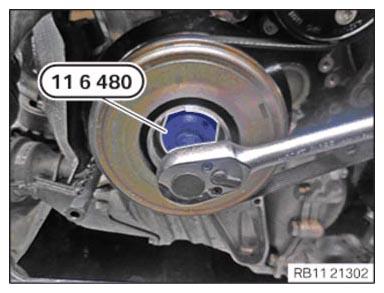

- Guide the special tool 0 493 380 (11 6 480)
out and remove.

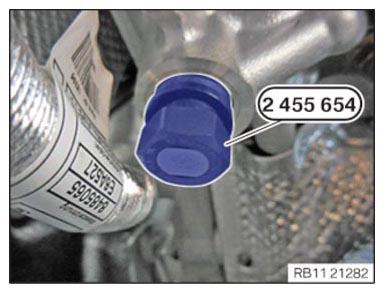

- Guide the special tool 2 455 654 out and remove.
