Install wheel carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

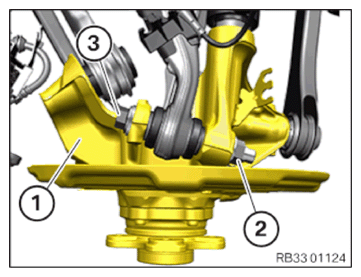

- Position the wheel carrier (1) on the upper wishbone.
- Replace the screw (3) and the nut (2).
Parts: Screw, nut
- Insert the screw (3).
- Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Upper wishbone to wheel carrier | ||
| M14 Replace screw and nut. | Joining torque Angle of rotation |
165 Nm 90° |
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .
- Position control link (1) on the wheel carrier.
- Replace the screw (2).
Parts: Screw
- Screw in screw (2) several turns.
The screw connection is tightened later in NORMAL POSITION .
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .
- Position the control arm (2).
- Replace the screw (1).
Parts: Screw
- Screw in screw (1) several turns.
The screw connection is tightened later in NORMAL POSITION .
Follow-up work
- Refer to ATTACHING THE CAMBER CONTROL ARM AND TRAILING ARM TO THE WHEEL CARRIER .
- Refer to ATTACHING THE WHEEL SPEED SENSOR .
- Refer to FASTENING THE CABLE OF THE REAR VERTICAL ACCELERATION SENSOR .
- Refer to INSTALLING THE REAR BRAKE DISC .
- Refer to SECURING REAR BRAKE CALIPER .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTIONS ON THE WHEEL CARRIER .
- Refer to SECURING REAR SPRING STRUT SHOCK ABSORBER ON THE WHEEL CARRIER .
- Refer to MOUNTING THE WHEEL .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
