Attaching the camber control arm and trailing arm to the wheel carrier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

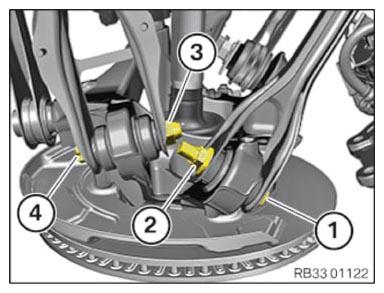

Position the camber control arm and trailing arm on the wheel carrier.
Replace screws (1) and (4) .
Parts: Screws
Replace the nuts (2) and (3) .
Parts: Nuts
Insert screws (1) and (4) .

Tighten nut (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Camber control arm to wheel carrier
M14 Replace screw and nut.	Joining torque	165 Nm
	Angle of rotation	90°

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.

Tighten the nut (2) hand-tight.
The screw connection is tightened later in normal position.
