Secure rear brake caliper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

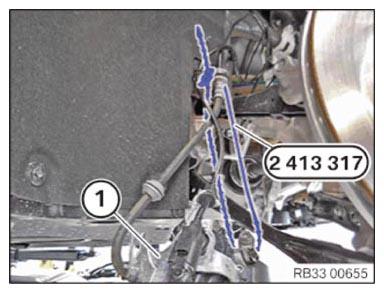

Detach and remove the special tool 2 413 317 .
Do not hang the brake caliper (1) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the brake caliper (4) on the wheel carrier in the arrow direction.
Make sure that the brake hose is not twisted when positioning.
Replace screws (3) .
Parts: Screws

Tighten down screws (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Brake anchor plate to rear wheel carrier
M12 Replace screw.	Tightening torque	130 Nm

Secure the brake hose (1) on the holder (2) .
