Fasten the output shaft on the wheel bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.
The installation note for front gearing must be observed at all times.
- Replace the collar screw (1) and compression spring (2).

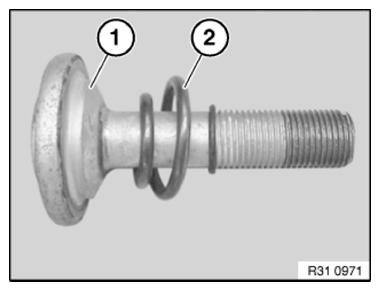

Parts: Collar screw and compression spring
- Note installation position of compression spring (2).
- Keep the collar screw (1) and the front gearing of the wheel bearing and the prop shaft clean and free of grease.

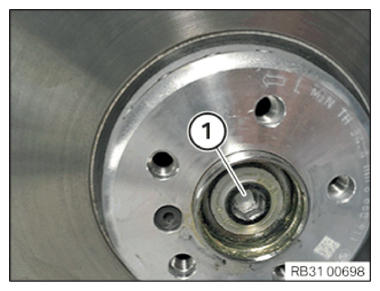

- Hand-tighten the collar screw (1) with the compression spring.NOTE: TECHNICAL INFORMATION
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth). - Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
- Press brake pedal.
- Tighten the collar screw.
TIGHTENING TORQUES SPECIFICATION
| Output shaft to wheel bearing | ||
| M16 Replace collar screw and spring. |
Joining torque | 210 Nm |
| Angle of rotation | 90° | |
NOTE:
TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.
The installation note for front gearing must be observed at all times.
- Replace the collar screw (1)
and compression spring (2)
.
Parts: Collar screw and compression spring
- Note installation position of compression spring (2) .
- Keep the collar screw (1)
and the front gearing of the wheel bearing and the prop shaft clean and free of grease.
- Hand-tighten the collar screw (1)
with the compression spring.NOTE: TECHNICAL INFORMATION
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth). - Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2) .
- Press brake pedal.
- Tighten the collar screw.
TIGHTENING TORQUES SPECIFICATION
| Output shaft to wheel bearing | ||
| M16 Replace the collar screw. |
Joining torque | 210 Nm |
| Angle of rotation | 90° | |
