Installing the rear brake disc
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
- Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!

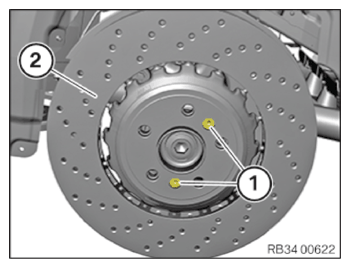

- Position the brake disc (2).
- Replace the screws (1).
Parts: Screws
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Brake disc to rear wheel hub | ||
| M8 Replace screw. |
Tightening torque | 16 Nm |
