Attaching the wheel speed sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Clean the bore for the wheel speed sensor and grease it with lubricating grease (see applicable BMW parts catalogue).

CONSUMABLE SPECIFICATION

Lubricating grease Staburags NBU 12K

100 g, Tube

83 23 9 407 810

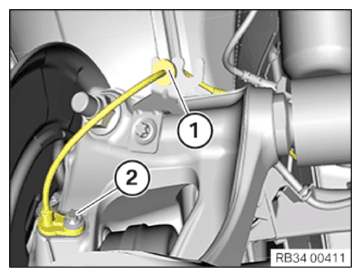

Position the wheel speed sensor on the wheel carrier.
Replace the screw (2) .
Parts: Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (2) .

TIGHTENING TORQUES SPECIFICATION

Rear wheel speed sensor on wheel carrier
Replace screw.	tightening torque	12 Nm

Hook the cable of the wheel speed sensor into the holder (1) .
