Tightening the screw connections on the wheel carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

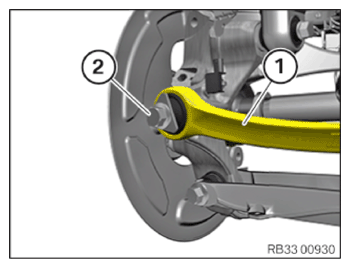

- Tighten the screw (2)
at the control link (1)
in NORMAL POSITION .TIGHTENING TORQUES SPECIFICATION
Track arm to wheel carrier M14
Replace screw.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° - Tighten the screw (1)
at the control arm (2)
in NORMAL POSITION .TIGHTENING TORQUES SPECIFICATION
Control arm to wheel carrier M16
Replace screw.

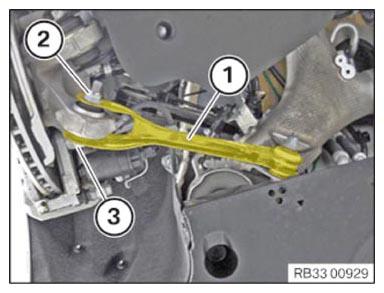

Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° - Tighten the nut (2)
at the trailing arm (1)
in NORMAL POSITION .
Counter-support screw (3) .
TIGHTENING TORQUES SPECIFICATIONTrailing arm to wheel carrier M12
Replace screw and nut.
Tighten in normal position.Joining torque 100 Nm Angle of rotation 90° - Lower the workshop jack and set it aside.
- Release the lug bolts and remove the special tool 2 358 630 .
