Securing rear spring strut shock absorber on the wheel carrier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

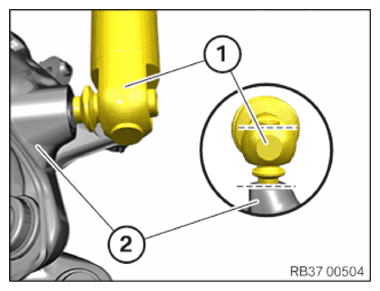

Align spring strut (1) parallel to wheel carrier (2) and guide it into the wheel carrier.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Position the spring strut shock absorber on the wheel carrier.

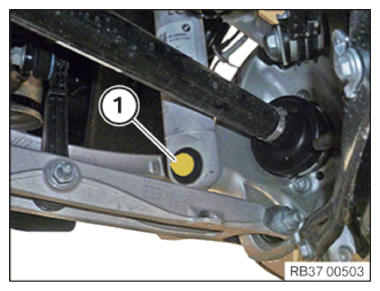

Replace the screw (1).
Parts: Screw

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten screw (1) in the NORMAL POSITION .

TIGHTENING TORQUES SPECIFICATION

Rear spring strut to wheel carrier
M14 Replace screw. Tighten in normal position.	tightening torque	175 Nm
