Install intake camshaft

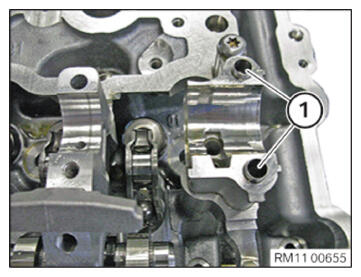

Check the fitting sleeves (1) for correct seating and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Coat all bearing positions (1) with fresh motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

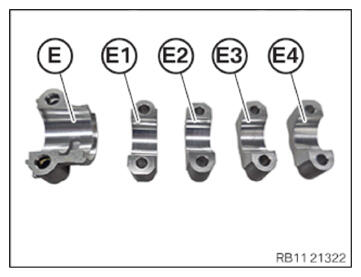

Clean all bearing positions of the intake camshaft bearing cap (E1) , (E2) , (E3) , (E4) and (E) and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

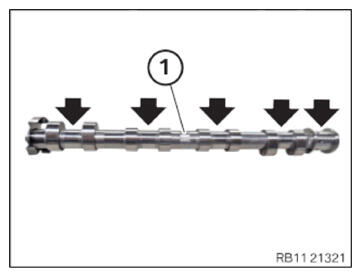

Clean all the bearing positions (arrows) of the intake camshaft (1) and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

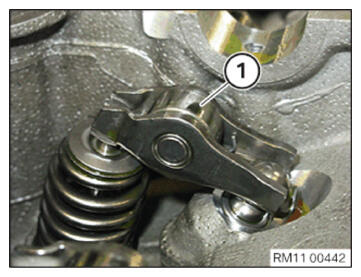

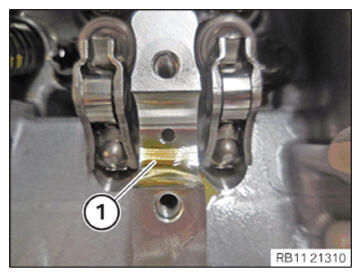

Before installing the intake camshaft, check the correct seat of the roller cam follower (1) .
Coat the roller cam follower (1) with fresh motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

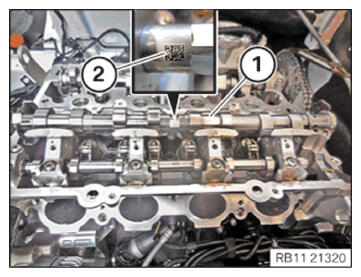

Insert the intake camshaft (1) into the cylinder head in such a way that the mark (2) points up.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The camshaft bearing caps must not be mixed up. The camshaft bearing caps must be installed in the installation position from which they were removed.

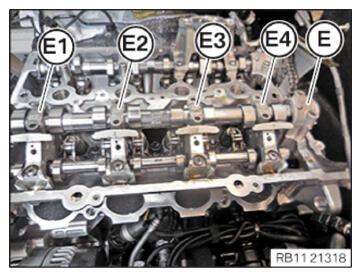

Position the intake camshaft bearing cap on the cylinder head.

NOTE: The intake camshaft bearing caps are legibly labeled from the intake side with E1, E2, E3, E4 and E .

Courtesy of BMW OF NORTH AMERICA, INC.

Intake camshaft bearing cap E is a thrust bearing.

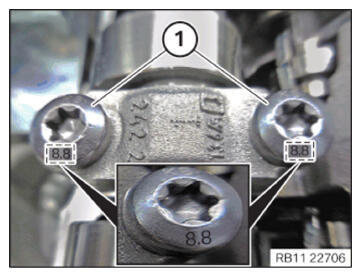

Check the tensile strength of the screws for the bearing cap.
The illustration shows the screw with a tensile strength of 8.8 .

Courtesy of BMW OF NORTH AMERICA, INC.

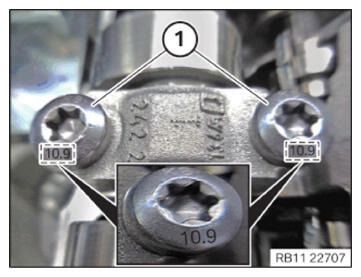

Check the tensile strength of the screws for the bearing cap.
The illustration shows the screw with a tensile strength of 10.9.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The camshaft is under tension due to the valve springs. Tighten or loosen each screw on the camshaft bearing caps in the prescribed sequence only by half a turn. Repeat procedure.

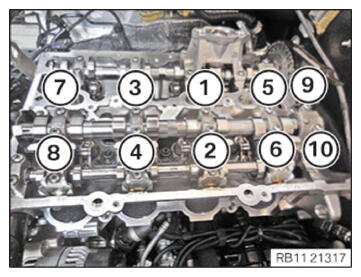

Press down the intake camshaft bearing cap and stepwise apply the screws in the order (1) to (10) until hand-tight.
Join the screws in sequence (1) to (10) in half turns.
Observe the joining torque.
Tighten all screws in the sequence from (1) to (10) .

TIGHTENING TORQUES SPECIFICATION

Intake camshaft to cylinder head
M6	Tensile strength of screw 8.8 Joining torque	9.6 Nm
M6	tightening torque	9.6 Nm
M6	Tensile strength of screw 10.9 Joining torque	11.8 Nm
M6	tightening torque	11.8 Nm

Fig 1: Intake Camshaft Bearing Caps Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
