Disassembling all special tools
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

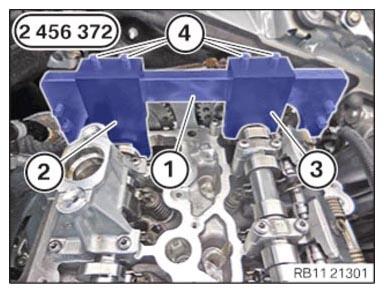

- Release screws (4) from the special tool set 2 456 372 .
- Guide the setting gauge 0.5° (2) out of the special tool 2 456 372 between the exhaust camshaft and the basic carrier (1) and remove.
- Guide the setting gauge 0.7° (3) out of the special tool 2 456 372
between the intake camshaft and the basic carrier (1) and remove.

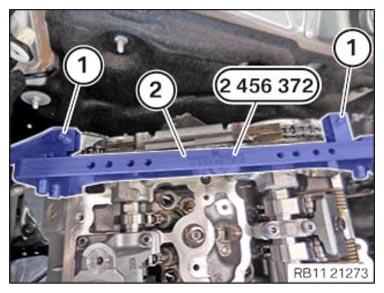

- Release screws (1) from the special tool set 2 456 372 .
- Guide the basic carrier (2) out of the special tool 2 456 372
and remove.

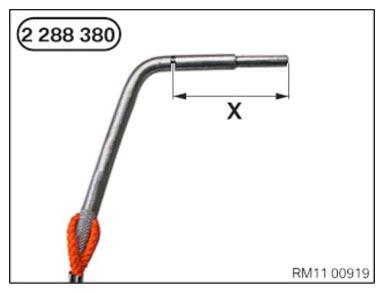

- Guide the special tool 2 288 380
out and remove.

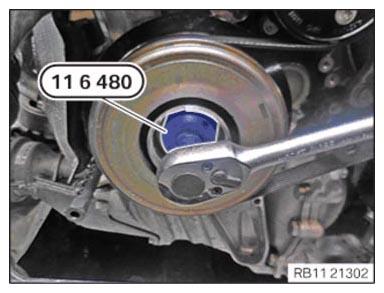

- Guide the special tool 0 493 380 (11 6 480)
out and remove.

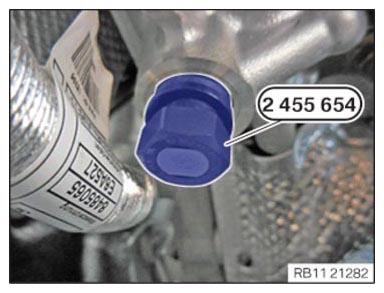

- Guide the special tool (1)2 455 654
out and remove.
