Installing the rail with injectors

• Mount the holder (1) above the bayonet fitting (2) on the injector.
• If the holder (1) has a cast lug:  Ensure that the installation position of the holder is correct.

  Courtesy of BMW OF NORTH AMERICA, INC.

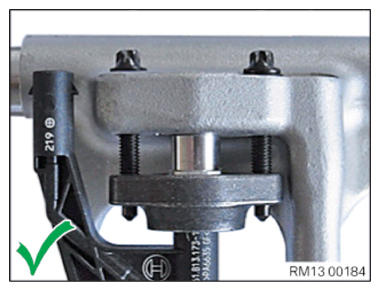

• If necessary, note the position of the cast lug:

  The holder is mounted correctly  when the cast lug lies in the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, note the position of the cast lug:

  The holder is mounted incorrectly  when cast lug (1) lies in the front.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to injectors  .
  Weld seams on the injector may tear due to incorrect distances between the rail and injector so that the injector must be replaced  .

  • Insertion of the distance gauge is compulsory.
  • Replace distance gauge, if a thickness of 8.5 mm is no longer given in the distance gauge.
• Use the special tool (distance gauge) 2 358 022 (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the injectors with holders and the new  screws (M5x30) to the rail.

  Parts:  Screws (M5x30)

• Place the rail on a clean table that the openings on the rail for the injectors point upwards.

  The electrical injector connections must point towards the fuel pressure sensor.

• Slide the special tool (distance gauge) 2 358 022 (2) between the holders and the rail onto the injector head.
• Make sure that the special tool (distance gauge) 2 358 022 (2) rests flat on the retaining bridge  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hand-tighten both screws (M5x30) (1) uniformly until special tool (distance gauge) 2 358 022 (2) rests flat against the rail and the holder.
• Remove the special tool (distance gauge)2 358 022 (1).
• Repeat this operation for all injectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check injectors (1) for loose fit at the rail.
• Align the electrical injector connections parallel to the rail.

  Injectors (1) must be able to move freely.

  Courtesy of BMW OF NORTH AMERICA, INC.

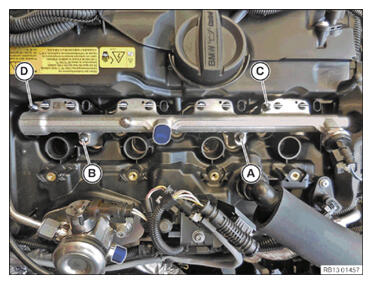

• Attach the rail (1) with the injectors to the cylinder head from the top.
• Ensure that the injector tips hit the bores provided in the cylinder head for the injection in the cylinder head.
• Ensure that the guides on the injector are slid correctly into the guide bore holes in the cylinder head.
• Press down until a resistance can be felt, position screws (M6x70) (A), (B), (C) and (D), and turn them until hand-tight.
• Set torque wrench to 2 Nm.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (A,) (D), (B) and (C) in alternating order by 90°  each with the torque wrench until the rail is positioned flush on the cylinder head.

  The illustration shows the rail lying flat on the cylinder head.

• If tightening torque (2 Nm) is achieved before the rail rests on the cylinder head: Disassemble the rail and restart the installation procedure.
  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.
• Tighten screw (A) by 5 Nm.
• Tighten screw (D) by 5 Nm.
• Tighten screw (B) by 5 Nm.
• Tighten screw (C) by 5 Nm.
• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

• Make sure that the rail (1) rests flat against the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert a wrench socket set into an extension.

  Do not use a reversible ratchet or torque wrench.

• Hand-tighten  the screws (M5x30) respectively in pairs (1) with (2), (3) with (4), (5) with (6), (7) with (8) alternatively with 90°  .
• Set torque wrench to 5 Nm.
  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.
  Fig 1: Fuel Rail Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Screw the M5x30 screws according to the following pattern:
  • Fuel injector 1:
  • Turn screw (1) at an angle of rotation of 90° with the torque wrench
  • Turn screw (2) at an angle of rotation of 90° with the torque wrench
  • Repeat the steps for screws (1) and (2) until 5 Nm is reached for the two screws
  • Fuel injector 2:
  • Turn screw (3) at an angle of rotation of 90° with the torque wrench
  • Turn screw (4) at an angle of rotation of 90° with the torque wrench
  • Repeat the steps for screws (3) and (4) until 5 Nm is reached for the two screws
  • Fuel injector 3:
  • Turn screw (5) at an angle of rotation of 90° with the torque wrench
  • Turn screw (6) at an angle of rotation of 90° with the torque wrench
  • Repeat the steps for screws (5) and (6) until 5 Nm is reached for both screws
  • Fuel injector 4:
  • Turn screw (7) at an angle of rotation of 90° with the torque wrench
  • Turn screw (8) at an angle of rotation of 90° with the torque wrench
  • Repeat the steps for screws (7) and (8) until 5 Nm is reached for both screws
• Mark all bolts (1) to (8) with a vertical line (see figure).
• Tighten screws using an angle of rotation  .
  • Tighten screw (1) at an angle of rotation of 90°
  • Tighten screw (2) at an angle of rotation of 90°
  • Tighten screw (3) at an angle of rotation of 90°
  • Tighten screw (4) at an angle of rotation of 90°
  • Tighten screw (5) at an angle of rotation of 90°
  • Tighten screw (6) at an angle of rotation of 90°
  • Tighten screw (7) at an angle of rotation of 90°
  • Tighten screw (8) at an angle of rotation of 90°
  Fig 2: Fuel Rail Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Check if all the screws from (1) to (8) are tightened at an angle of rotation of 90°.

  Marks (lines) must be horizontal (see illustration).

  Fig 3: Fuel Rail Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Release bolts (M6x70) (A) to (D).

  The screws must be released  .

  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (A) at 5 Nm.
• Tighten screw (D) at 5 Nm.
• Tighten screw (B) at 5 Nm.
• Tighten screw (C) at 5 Nm.
• Mark screws (A) to (D) with a vertical line (see figure).
• Tighten (M6x70) screws (A) to (D) at an angle of rotation of 90°.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check if screws (A) to (D) were tightened at an angle of rotation of 90°.

  All the marks (lines) must be horizontal (see illustration).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock all the connectors (1) to the injectors.

  All connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread the cable channel (3) in and install.
• Thread in ground cable (2) and install.
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING THE CYLINDER HEAD COVER ACOUSTIC COVER .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to RESET ULTRA-SMALL QUANTITY ADAPTATION .
