Installing the heat shield on the cylinder head

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

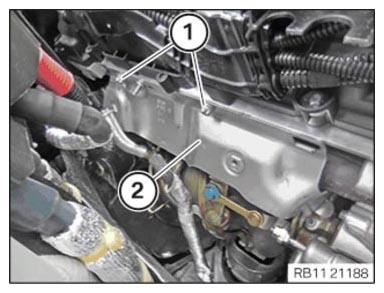

Thread in the heat shield (2) and position.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to cylinder head
M8 x 12	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version without Real Driving Emissions 2 (-SA1 DZ):

Feed the heat shield (2) into the marked area and install it.

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to cylinder head
M8x12	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version without Real Driving Emissions 2 (-SA1DZ):

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to trim strip
M6x12	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
