Install the integrated power supply module (PDM)

WARNING: Working on 12 V electrical system .
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Insert and install the integrated power supply module (PDM) (2).
The detents (1) must engage audibly.
Unlock the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

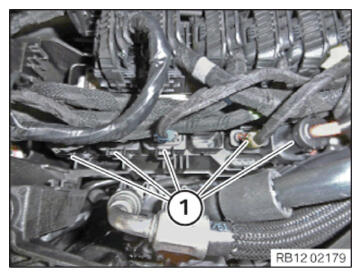

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
