Install control unit bracket

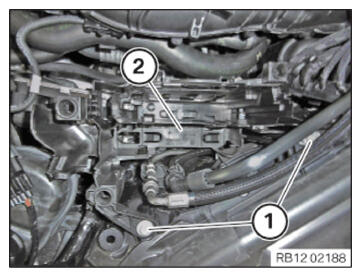

• Make sure the control unit bracket (1) at bottom is fed into the mount (2) correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

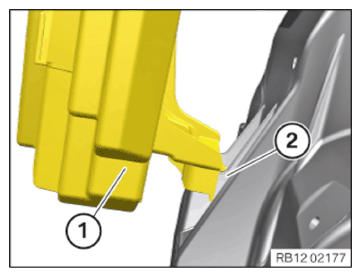

• Feed in the control unit bracket (2) and install.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Control unit bracket at the shock tower
  Hexagon screw	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

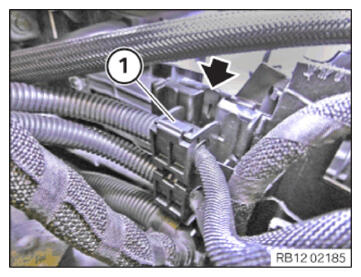

• Feed in and install the cable clip (1).

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

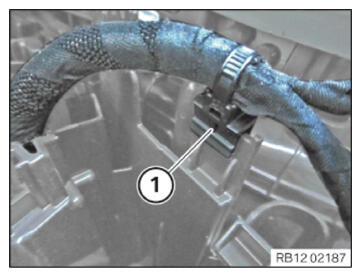

• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

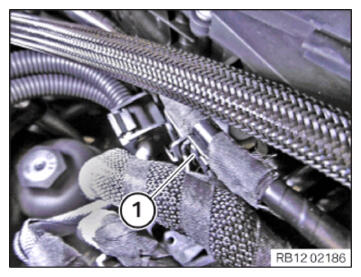

• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

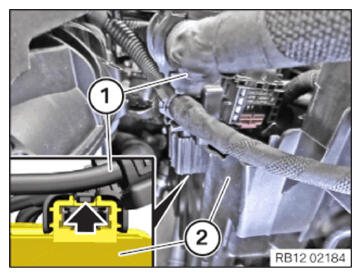

• Attach the cable bracket (1) to the control unit bracket (2) and lock.

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

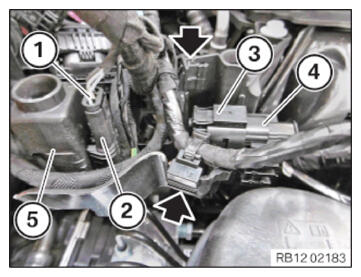

• Attach the connector (4) to the control unit bracket (5) and lock.

  The connector (4) must engage audibly.

• Connect connectors (3) and lock.

  The connector (3) must engage audibly.

• Attach the connector (2) to the control unit bracket (5) and lock.

  The connector (2) must engage audibly.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
