Install the holder of the positive battery cable
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

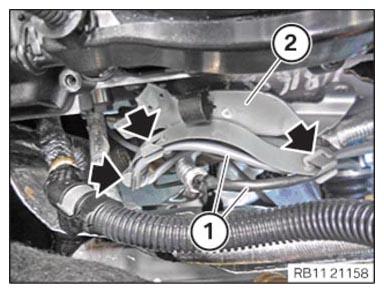

- Feed in bracket (2) of positive battery cable and position.
- Fasten both cables (1) in the clamps (arrows).
- Version A (without mild hybrid technology): CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

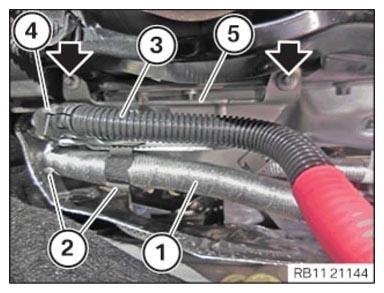

- Feed in bracket (5) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X18 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
- Secure the positive battery cable (3) at the clamps (4).
- Version B (with mild hybrid technology): CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

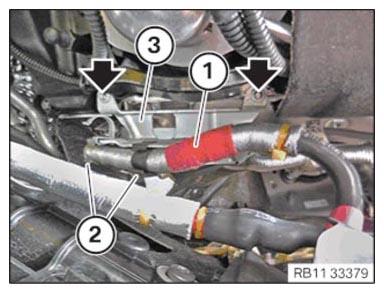

- Feed in bracket (3) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X18 Tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2).
