Installing the DME control unit

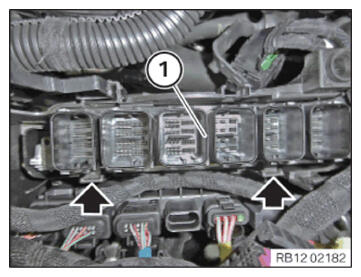

• Feed in and install DME control unit (1).

  The locks (arrows) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

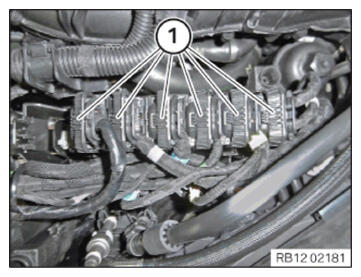

• Connect connectors (1) and lock.

  All connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

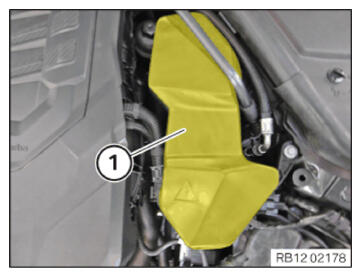

• Feed in the cover (1) in the guides and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to IF THE DME CONTROL UNIT IS REPLACED: PROGRAM/CODE DME CONTROL UNIT .
