Install the oil vacuum pump

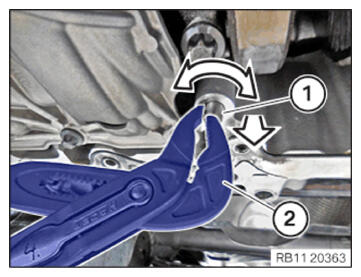

• Feed out the centering sleeves (1)  from the crankcase in the arrow direction with standard tools (2)  and remove it.
• Replace the centering sleeves (1)  .

  Parts:  Centering sleeves

  Courtesy of BMW OF NORTH AMERICA, INC.

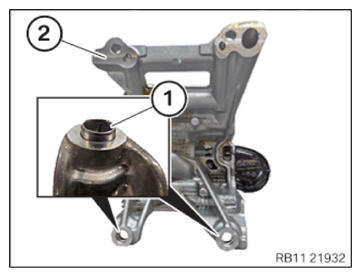

• Insert and install centering sleeves (1)  on the oil vacuum pump (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

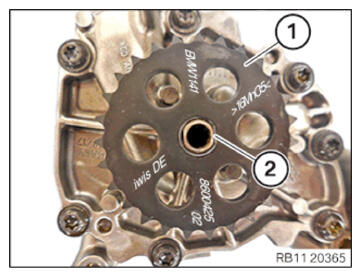

• Position sprocket wheel (1)  on oil vacuum pump (2)  .

  The labeling on the sprocket wheel (1)  must point away from the oil vacuum pump (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1)  .

  Parts:  Screw

  NOTE: TECHNICAL INFORMATION
  The thread is a left-hand thread.
• Guide in and fix the screw (1)  .
  NOTE: TECHNICAL INFORMATION
  Conduct the following operation with the assistance of a second person.

  Courtesy of BMW OF NORTH AMERICA, INC.

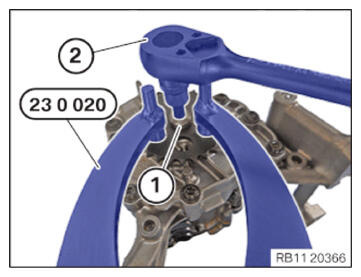

• Counter support the sprocket with the special tool  0 491 440 (23 0 020)  and tighten the screw (1) with  standard tools (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Sprocket wheel at the oil vacuum pump
  M8 Important - left-hand thread Replace screw.	1. Joining torque	5 Nm
  	2. Angle of rotation	90°

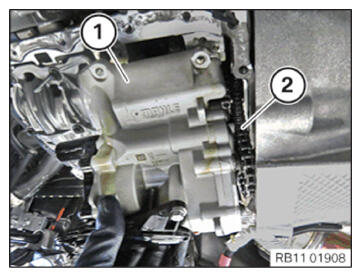

• Guide oil vacuum pump (1)  into drive chain (2)  and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

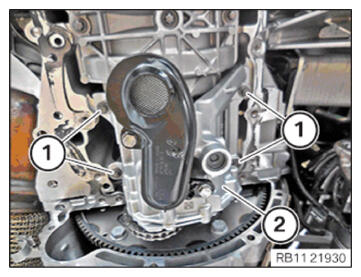

• Replace screws (1)  .

  Parts:  Screws

• Tighten screws (1) manually  in crosswise sequence.
• Tighten screws (1)  crosswise.
  TIGHTENING TORQUES SPECIFICATION



  Oil vacuum pump to crankcase
  M8 Replace screw.	1. Joining torque	15 Nm
  	2. Angle of rotation	45°

  Courtesy of BMW OF NORTH AMERICA, INC.
