Install the wiring harness section for the range extender electrical machine electronics (REME)

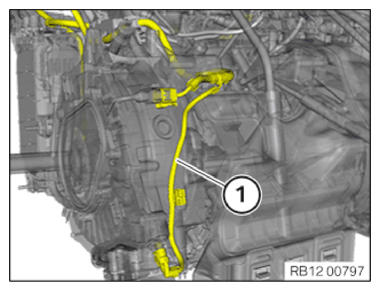

- Insert the wiring harness section (1).
- Check the wiring harness section (1) for correct fit.
- Secure the wiring harness section at the clips and clamps.
- Connect and lock the connector (2) on the bottom at the starter motor generator.
- Secure the acoustic cover (1).
- Connect and lock the connector (4) of the rotor position sensor in front at the starter motor generator.
- Secure the wiring harness section on the holders (3).
- Connect connectors (2) and lock.
- Secure the wiring harness section at the clamps (1).
- Connect and lock the signal connector (1).
- Tighten the screws (1) on the heat shield (2).
Follow-up work
- Refer to INSTALLING VERTICAL STRUT .
- Refer to INSTALLING ENGINE COMPARTMENT FAN .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING WHEEL ARCH COVER .
- Refer to INSTALLING UNDERBODY PROTECTION .
- Refer to INSTALLING SUPPORT FOR THE REAR BUMPER PANEL .
- Refer to INSTALLING REAR BUMPER PANEL .
- Refer to INSTALLING NUMBER PLATE LIGHT .
- Refer to MOUNTING LICENSE PLATE .
- Refer to INSTALLING THE HEAT EXCHANGER FOR THE COOLANT .
- Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT OF THE DRIVE .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to FILLING THE HIGH-TEMPERATURE COOLANT CIRCUIT FOR THE RANGE EXTENDER USING THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING FRONT RIGHT BATTERY GROUND LEAD IN TRUNK .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING FRONT RIGHT COVER IN TRUNK .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to READING OUT THE FAULT MEMORY .
