Installing the throttle body

• Replace sealing rings.

  Parts:  Sealing ring

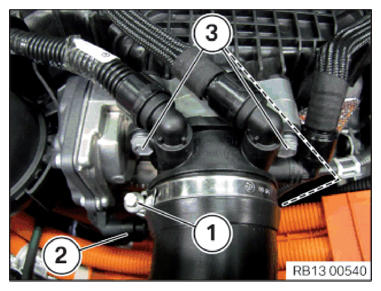

• Insert and position the throttle body.
• Position and tighten the bolts (3)  .
  TIGHTENING TORQUES SPECIFICATION



  Throttle body to intake system
  Hexagon screw Replace the sealing ring.	Tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the clean air pipe to the adapter of the throttle body.
• Tighten clamp (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Clean air pipe to intake silencer and throttle valve
  Screw clamp Replace the sealing ring.	Tightening torque	3 Nm

• Secure the connector (2)  to the throttle body.

Follow-up work

• Refer to INSTALLING SERVICE CAP IN TRUNK .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to READING OUT THE FAULT MEMORY .
