Install engine compartment fan

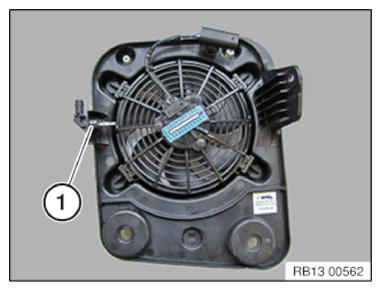

• When replacing the engine compartment fan: Remount the temperature sensor (1).
• Unclip temperature sensor (1) from the engine compartment fan.
• Check the temperature sensor for damage and, if necessary, replace it.
• Clip in temperature sensor on the engine compartment fan.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install engine compartment fan (2).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Engine room ventilator on deformation element
  M8 screw	Tightening torque	12 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (3).
  TIGHTENING TORQUES SPECIFICATION



  Engine room ventilator on vertical strut
  Screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (2) on the temperature sensor and clip in the cable on the fan cowl.
• Connect connector (1).
• Install the sound insulation (2).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Sound insulation to engine compartment
  screw	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WHEEL ARCH COVER .
• Refer to INSTALLING SERVICE CAP IN TRUNK .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
