Install rear bumper panel

• Connect associated plug connections.

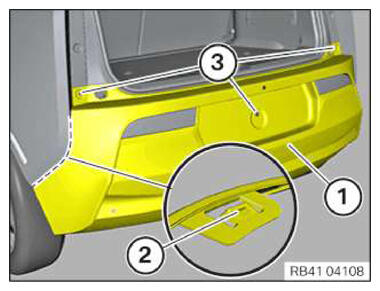

• Position the bumper cover (1) and clip in at the detents (2) on the left and right.
• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Bumper cover to guide, middle
  Tightening torque	2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten bolts (1) on the wheel arch cover (2) on the left and right.
  TIGHTENING TORQUES SPECIFICATION



  Bumper cover on side wall
  Tightening torque	2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Bumper cover to underbody planking
  Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING NUMBER PLATE LIGHT .
• Refer to MOUNTING LICENSE PLATE .
