Install timing case cover, bottom

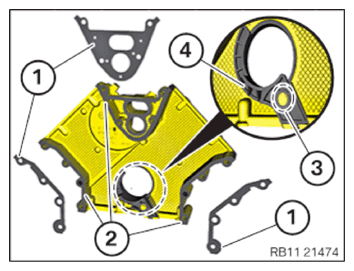

Mounting the beaded metal gaskets

Clean sealing surfaces (2).
Replace beaded metal gaskets (1).
Parts: Sheet metal beaded seals
Securing the beaded metal gaskets (1) with the timing case cover screws.

For timing case cover or timing chain replacement:

Loosen screw (3).

Remove jump guard (4).

Position jump guard (4).

Tighten down screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Jump guard
M6x25	Tightening torque	10 Nm

For timing case cover or timing chain replacement:

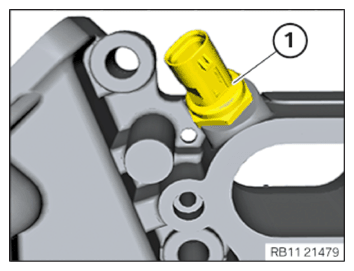

Release and remount coolant temperature sensor (1).

Tighten the coolant temperature sensor (1).

TIGHTENING TORQUE SPECIFICATIONS

Water/oil temperature sensor
Sensor M12x1.5	Tightening torque	18 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

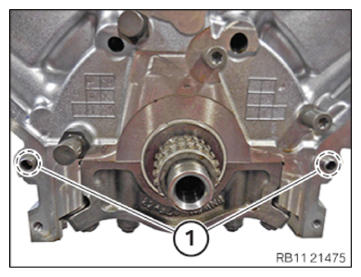

The centering pins (1) must not be damaged, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

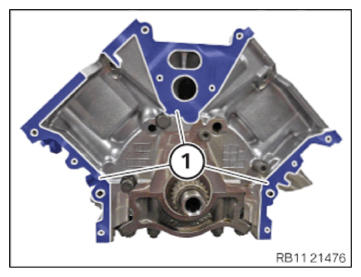

(1) Clean sealing surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening the screw connection 1 on the front timing case cover

Position the timing case cover.
Tighten screws in the order (1) to (2).

Fig 1: Timing Case Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Securing the screw connection 2 on the front timing case cover

Tighten screws in the order (3) to (9).

Fig 2: Front Timing Case Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting the screw connection 3 on the front timing case cover

Position the carrier plate (1).
Tighten screws in the order (10) to (12).

Fig 3: Carrier Plate Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the plug connection (1) to the coolant temperature sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FASTENING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND THE HEAT EXCHANGER .
Refer to INSTALLING COOLANT PUMPS .
Refer to INSTALLING THE VIBRATION DAMPER .
Refer to INSTALLING THE UPPER OIL SUMP SECTION .
Refer to INSTALLING FRONT AXLE DIFFERENTIAL .
Refer to INSTALLING THE ENGINE MOUNT .
Refer to FASTENING AIR CONDITIONING COMPRESSOR .
Refer to INSTALLING OIL PUMP .
Refer to INSTALL THE LOWER OIL PAN SECTION .
Refer to INSTALLING RIGHT CYLINDER HEAD .
Refer to INSTALLING BOTH VANOS ADJUSTERS (CYLINDER HEAD DISASSEMBLY, BANK 1) .
Refer to INSTALLING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
Refer to INSTALLING THE CYLINDER HEAD COVER ON THE RIGHT .
Refer to INSTALLING WIRING HARNESS SECTION FOR IGNITION SYSTEM OF BANK 1 .
Refer to SECURING THE WIRING HARNESS SECTION FOR THE INTEGRATED POWER SUPPLY MODULE .
Refer to INSTALLING RIGHT HIGH PRESSURE PUMP .
Refer to INSTALLING THE HEAT SHIELD OF THE CRANKCASE VENTILATION OF CYLINDERS 1 TO 4 .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to SECURING THE FUEL SUPPLY LINE ON THE LEFT .
Refer to SECURING COOLANT LINES FOR THE EXHAUST TURBOCHARGERS .
Refer to INSTALL RAIL OF CYLINDER BANK 1 .
Refer to INSTALLING RAIL ON BANK 2 .
Refer to INSTALLING THE IGNITION COILS OF CYLINDERS 5 AND 6 .
Refer to INSTALLING IGNITION COILS OF CYLINDER BANK 1 .
Refer to INSTALLING THE LEFT THROTTLE BODY .
Refer to INSTALLING ALTERNATOR .
Refer to INSTALL DRIVE BELT .
Refer to INSTALLING THE LEFT CYLINDER HEAD .
Refer to INSTALLING BOTH LEFT VANOS ADJUSTERS (CYLINDER HEAD INSTALLATION CYLINDER BANK 2) .
Refer to INSTALLING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
Refer to INSTALLING HEAT SHIELD ON THE BOTTOM .
Refer to INSTALLING FRONT HEAT SHIELD .
Refer to INSTALLING BOTH EXHAUST MANIFOLDS .
Refer to INSTALLING THE HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 5 TO 8 .
Refer to INSTALLING THE HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 1 TO 4 .
Refer to INSTALLING THE LEFT CYLINDER HEAD COVER .
Refer to INSTALLING LEFT AND RIGHT EXHAUST TURBOCHARGERS .
Refer to INSTALLING WIRING HARNESS SECTION FOR IGNITION SYSTEM OF BANK 2 .
Refer to INSTALLING RIGHT HIGH PRESSURE PUMP .
Refer to INSTALLING THE LEFT HIGH PRESSURE PUMP .
Refer to INSTALLING THE HEAT SHIELD OF THE CRANKCASE VENTILATION OF CYLINDERS 5 TO 8 .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to ATTACHING THE RIGHT FUEL SUPPLY LINE .
Refer to SECURING COOLANT LINES FOR THE EXHAUST TURBOCHARGERS .
Refer to INSTALLING RAIL ON BANK 2 .
Refer to INSTALLING THE IGNITION COILS OF CYLINDER BANK 2 .
Refer to INSTALLING THE IGNITION COILS OF CYLINDERS 1 AND 2
Refer to FASTENING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND THE HEAT EXCHANGER .
Refer to INSTALLING THE LEFT THROTTLE BODY .
Refer to INSTALLING THE CHARGE AIR COOLER ON THE LEFT AND RIGHT .
Refer to INSTALLING ALTERNATOR .
Refer to INSTALL DRIVE BELT .
Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
Refer to INSTALLING OIL FILLER NECK .
Refer to INSTALLING BOTH EXHAUST MANIFOLDS .
Refer to INSTALLING THE HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 5 TO 8 .
Refer to INSTALLING THE HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 1 TO 4 .
Refer to INSTALLING FRONT HEAT SHIELD .
Refer to INSTALLING LEFT AND RIGHT EXHAUST TURBOCHARGERS .
Refer to INSTALLING UPPER CATALYTIC CONVERTER NEAR ENGINE FOR BANK 2. .
Refer to INSTALLING CATALYTIC CONVERTER NEAR THE ENGINE ABOVE CYLINDER BANK 1 .
Refer to INSTALLING HEAT SHIELD, TOP .
Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
Refer to INSTALLING THE CROSSING OF THE TRANSMISSION WIRING HARNESS .
Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE .
Refer to INSTALLING BRACKET FOR RIGHT INTAKE SILENCER .
Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 1 TO 4 .
Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 5 TO 8 .
Refer to INSTALL THE ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
Refer to REMOVING THE ENGINE FROM THE ENGINE SUPPORT BRACKET .
Refer to ATTACHING THE ENGINE TO THE LIFTING TABLE .
