Installing fuel delivery line

Feed the fuel supply line in and position it.

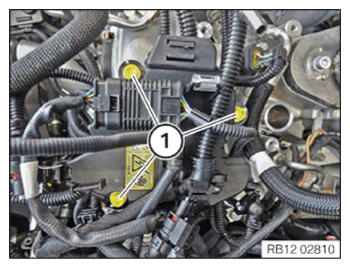

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Wiring harness sensor system to the cylinder head cover
M6x16 screw	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

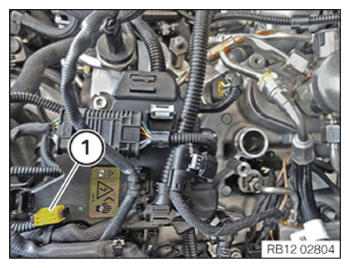

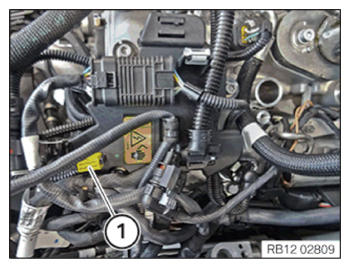

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

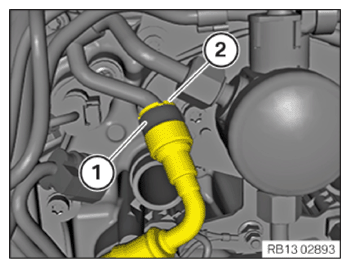

Connect and lock the fuel hose (2).
Install the retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

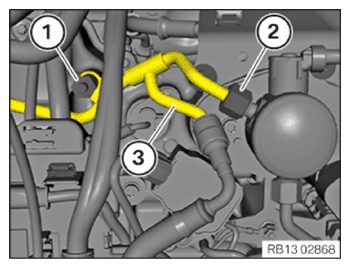

Position the fuel supply line (3).

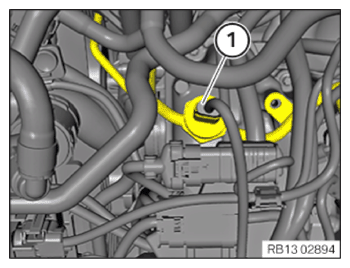

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Double banjo bolt to the cylinder head cover
M6 Double banjo bolt	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2).

TIGHTENING TORQUE SPECIFICATIONS

Fuel supply line/rail to high pressure pump
Nut	tightening torque	30 Nm

Clip in the wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.

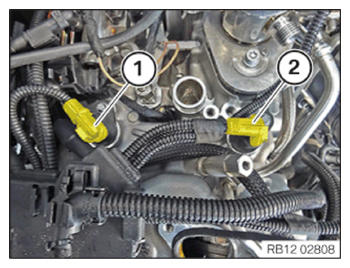

Connect connectors (2) and lock.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Hexagon screw M6 with threaded bolt M5 to cylinder head cover
Hexagon screw M6 with threaded bolt M5	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

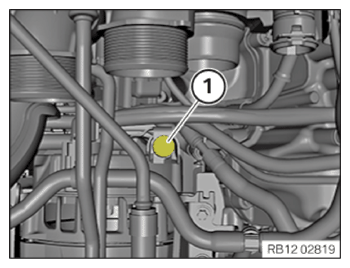

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Wiring harness sensor system to the cylinder head cover
M6x16 screw	tightening torque	8 Nm

Clip in the wiring harness mounting (2).
Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Cable splitter sensor system to the cylinder head cover
hexagon nut M5	tightening torque	5.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

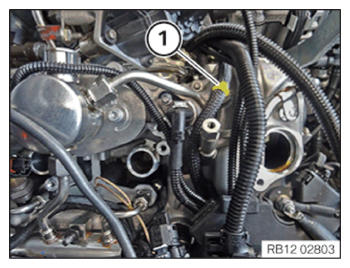

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Fuel supply line/rail to high pressure pump
Nut	tightening torque	30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

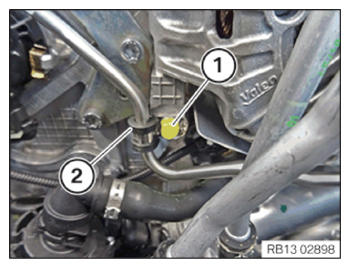

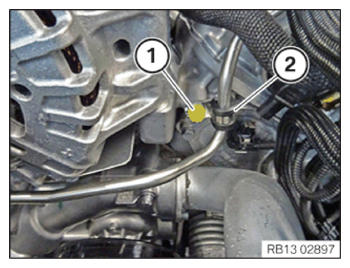

Position the holder (2) of the fuel delivery line.
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Fuel supply line to the cylinder head
Hexagon screw M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position the holder (2) of the fuel delivery line.
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Fuel supply line to the cylinder head
Hexagon screw M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

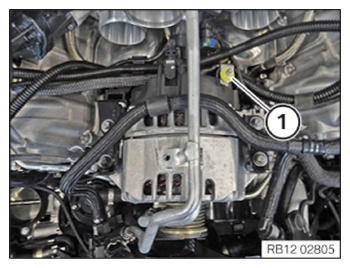

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Positive battery cable to alternator
Nut M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

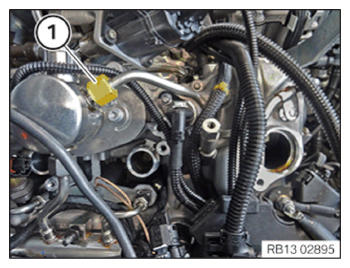

Install the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

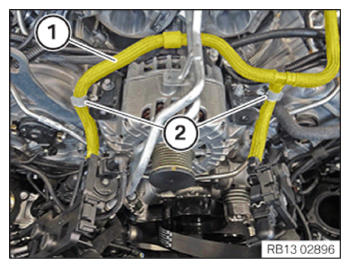

Clip the tank vent line (1) into the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the positive battery cable (1) in clip.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to SECURING COOLANT LINES FOR THE EXHAUST TURBOCHARGERS .
Refer to INSTALLING IGNITION COIL ON CYLINDER 5 .
Refer to INSTALLING THE IGNITION COIL ON CYLINDER 1 .
Refer to INSTALLING THE LEFT THROTTLE BODY .
Refer to INSTALLING THE CHARGE AIR COOLER ON THE LEFT AND RIGHT .
Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
Refer to INSTALLING DRIVE BELT .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
Refer to INSTALLING OIL FILLER NECK .
Refer to INSTALLING BRACKET FOR RIGHT INTAKE SILENCER .
Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
Refer to FASTENING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND THE HEAT EXCHANGER .
Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
Refer to RECONNECTING ALL BATTERY GROUND LEADS .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
