Install alternator

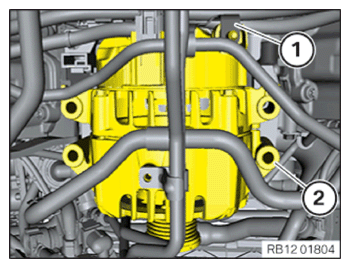

- Thread in and position the alternator (2) .

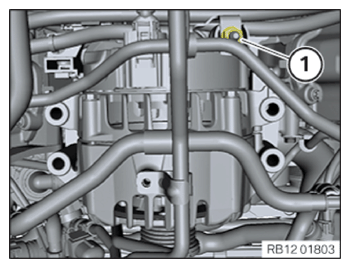

- Position the positive battery cable (1)
.
- Tighten the nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery cable to alternator | ||
|---|---|---|
| Nut M8 | Tightening torque | 19 Nm |

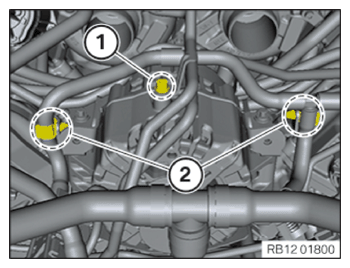

- Connect connectors (1) and lock.
- Insert the cover of the positive battery cable (2)
.

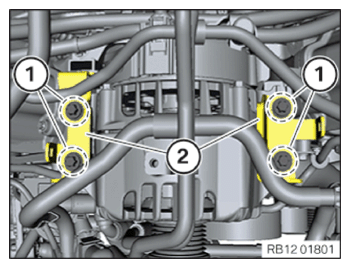

- Feed in and position holder (2) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Alternator to cylinder head | ||
|---|---|---|
| M8x85 screw | Tightening torque | 21.4 Nm |

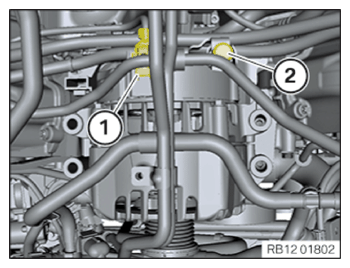

- Position tank vent line.
- Engage holder of the tank ventilation line (2) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant lines to alternator | ||
|---|---|---|
| M6x16 screw | Tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE CHARGE AIR COOLER ON THE LEFT AND RIGHT .
- Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
- Refer to INSTALLING DRIVE BELT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALLING OIL FILLER NECK .
- Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to WHEN REPLACING THE ALTERNATOR/ALTERNATOR REGULATOR: RESET GENERATOR STATISTICAL DATA .
