Attaching the engine to the lifting table
- Lift the engine out of the engine mounts with the special tool 2 220 718 (1) and the special tool 0 490 567 (11 0 020).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount to engine support bracket M12 tightening torque 100 Nm - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount to engine support bracket M12 tightening torque 100 Nm - Loosen screws (2).
- Remove the swivel bearing mount (1) and set it aside.
- Hold the swivel bearing with special tool 2 220 718.
Check
- Replace the snap ring (1).
Parts: snap ring
- Coat contact surface (2) of the output shaft with the approved front axle transmission oil. Use only BMW-approved fluids. See the Fluid Capacities tab for the selected vehicle..
- Check the gearing for damage or deformation.
Result
The gearing is deformed or damaged.
Measure
- Replace the output shaft.
Parts: Output shaft
- Clean and degrease front gearing of wheel bearing (1) and output shaft (2).
- Install front gearing of wheel bearing (1) and output shaft (2) and establish a positive connection.
- Twist both the wheel hub and the output shaft (2) in arrow direction to ensure that the front gearings mesh.
- Replace the screw (1) and the compression spring (2).
Parts: Screw, compression spring
- Clean and degrease the screw (1).
- Observe the installation position of the compression spring (2)!NOTE: TECHNICAL INFORMATION

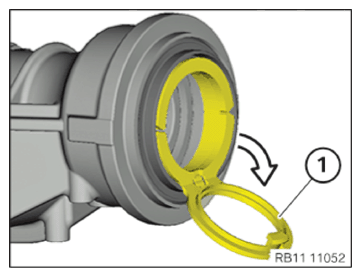

Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft. - Open the installation protection ring (1) in the arrow direction before assembly of the output shaft.

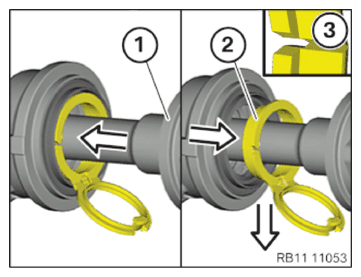

- Insert the output shaft (1) in the arrow direction.
- Release the installation protection ring (2) and feed out slightly.
- Apply force to pull the installation protection ring (2) downward in the arrow direction until the predetermined breaking points (3) on the installation protection ring break.

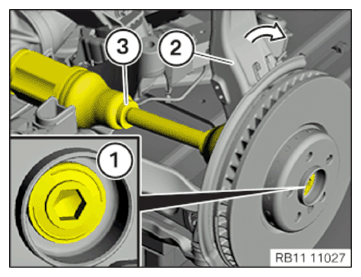

- Tilt the swivel bearing (2) slightly forward in arrow direction.
- Insert the output shaft (3) into the front axle differential all the way to the stop until you feel the output shaft lock in place.
- Tighten screw (1) with the special tool 0 490 504 (00 9 120).
TIGHTENING TORQUE SPECIFICATIONS
| Output shaft to wheel bearing | ||
|---|---|---|
| M16 Replace collar screw and spring. |
Joining torque | 210 Nm |
| Angle of rotation | 90° | |
Checking lining sleeves
- Check the fitting sleeves (1) for correct seating and damage and replace if necessary.
- Slide transmission (1) to the front and position at the engine.
- Apply retaining screws (1) on the lifting table (2) on both sides hand-tight.
Flange-mount transmission
- Transmission flange-mount.
- Rotate torque converter until bore in torque converter is flush with bore in drive plate.
- Join and tighten the transmission bolts (arrows).TIGHTENING TORQUE SPECIFICATIONS
Transmission to engine M8 tightening torque 19 Nm M10 tightening torque 38 Nm
Remove the special tool from the torque converter

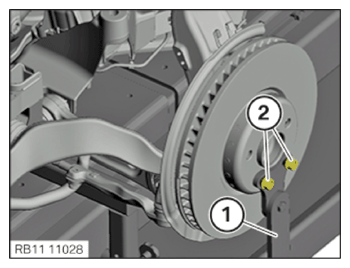

- Release the screws (1) and (2).
- Remove the special tool 0 494 451 (24 4 160).
- Replace screws (1).
Parts: Screws
- Screw the torque converter onto the vertically arranged elongated hole.
The torque converter must always be screwed to the vertically arranged elongated hole first.
- Turn the torque converter until the elongated hole is visible in the opening.
- Tighten down screw (1).
Crankshaft at central bolt may only be turned clockwise.
TIGHTENING TORQUE SPECIFICATIONSTorque converter to flywheel M10
Replace screws.tightening torque 60 Nm - Observe the tightening sequence of the additional five screws (torque converter on flywheel) compulsorily:
Tightening sequence: 4 - 3 - 6 - 5 - 2
The screw connection (1) is the vertically arranged elongated hole in the torque converter.
TIGHTENING TORQUE SPECIFICATIONSTorque converter to flywheel M10
Replace screws.tightening torque 60 Nm - Install the cover (1).
- Position the front prop shaft.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Prop shaft before the front axle differential Replace screws.
Joining torque and angle of rotation must be observed without fail.Joining torque 25 Nm Angle of rotation 45° - Detach the engine on the engine mounting bracket with a workshop crane and the special tool 0 490 567 (11 0 020).
- Replace sealing rings.
Parts: Sealing ring
- Install hydraulic lines (1) in arrow direction on the transmission.
- Position and tighten the screw (2).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil line to transmission M6x25
Replace the sealing ring.tightening torque 8 Nm - Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Transmission oil line to transmission M6x25
Replace the sealing ring.tightening torque 8 Nm - Release the tensioning strap (1) from the transmission (2).
- Connect connectors (1) and lock.
- Connect the connector (1) to the transfer box (TB) and lock it.
- Fix wiring harness fasteners (2).
- Connect connector (3) on the automatic transmission and lock it.
- Remove ground cable.
- Tighten down screw (4).TIGHTENING TORQUE SPECIFICATIONS

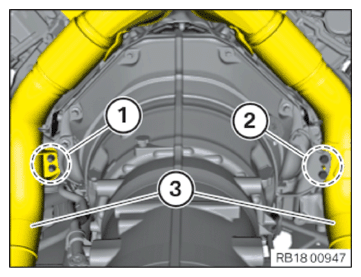

Ground connection on transmission M6x12 screw Tightening torque 10 Nm - Feed in and install the catalytic converters (3).
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Bottom catalytic converter Nut M8
Replace nuts.tightening torque 23 Nm - Tighten the nuts (2).TIGHTENING TORQUE SPECIFICATIONS
Bottom catalytic converter Nut M8

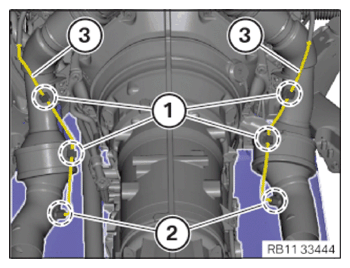

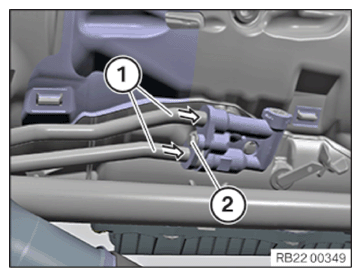

Replace nuts.tightening torque 23 Nm - Clip the pressure lines (3) into the retaining clips in areas (1).
- Tighten union nuts (2).
TIGHTENING TORQUE SPECIFICATIONS
| Pressure line on catalytic converter | ||
|---|---|---|
| Pressure line | Tightening torque | 40 Nm |
