Install the oil vacuum pump

• Guide out and remove centering sleeves (1)  from the crankcase in the arrow direction using standard tools (2)  .
• Replace the centering sleeves (1)  .

  Parts:  Centering sleeves

  Courtesy of BMW OF NORTH AMERICA, INC.

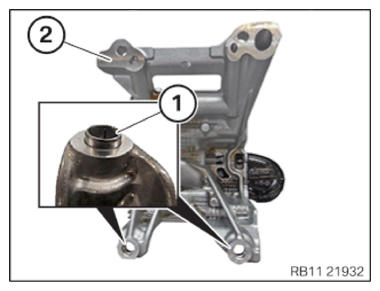

• Insert and install centering sleeves (1)  on the oil vacuum pump (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position sprocket wheel (1)  on oil vacuum pump (2)  .

  The labeling on the sprocket wheel (1)  must point away from the oil vacuum pump (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1)  .

  Parts:  Screw

  NOTE: TECHNICAL INFORMATION
  The thread is a left-hand thread.
• Guide in and fix the screw (1)  .
  NOTE: TECHNICAL INFORMATION
  Conduct the following operation with the assistance of a second person.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Grip the sprocket wheel using special tool  0 491 440 (23 0 020)  and tighten screw (1) using standard tools (2).
  TIGHTENING TORQUE SPECIFICATION



  Sprocket wheel at the oil vacuum pump
  M8 Important - left-hand thread Replace screw.	1. Joining torque	5 Nm
  	2. Angle of rotation	90°

• Guide oil vacuum pump (1)  into drive chain (2)  and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REFITTING SUMP .
• Refer to INSTALLING STARTER MOTOR .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
• Refer to INSTALLING THE FRONT AXLE SUPPORT .
• Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
• Refer to ATTACHING THE LEFT AND RIGHT TENSION STRUTS ON THE SWIVEL BEARING .
• Refer to ATTACHING THE LEFT AND RIGHT WISHBONE ON THE SWIVEL BEARING .
• Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
• Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
• Position the line.

  Clip the line into the bracket (2).

  Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to FILLING ENGINE OIL .
• Refer to OPENING THE OIL FILLER CAP .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
