Installing the oil-level sensor

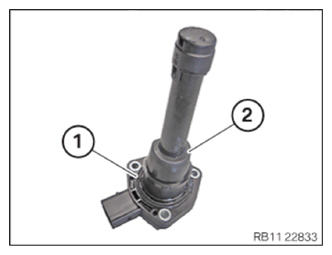

- Replace O-ring (1)
on oil-level sensor (2)
.
Parts: O-ring

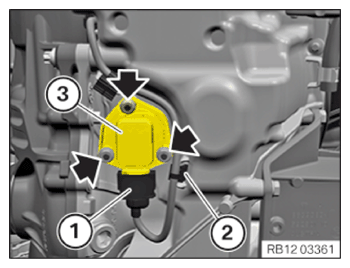

- Insert and install the oil-level sensor (3) .
- Tighten the nuts (arrows).TIGHTENING TORQUES SPECIFICATION
Oil level sensor to oil sump hexagon nut M6 Replace nuts. Joining torque 2 Nm tightening torque 8.5 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Secure clamps (2) .
Follow-up work
- Refer to RAISING THE FRONT SUBFRAME .
- Refer to FASTENING FRONT AXLE SUPPORT .
- Refer to SECURING THE TRANSMISSION OIL COOLER LINES ON THE HOLDER .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT ON THE ANTI-ROLL BAR .
- Refer to ATTACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
- Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
- Refer to SECURING THE DOUBLE PIVOT ON THE STEERING GEAR .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
- Refer to FASTENING THE WIRING HARNESS SECTION ON TO THE RIGHT SPRING STRUT .
- Refer to FASTENING THE WIRING HARNESS SECTION ON TO THE LEFT SPRING STRUT .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to REMOVING THE OIL FILLER CAP .
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to INSTALLING THE OIL FILLER CAP .
- Refer to INSTALLING THE REAR SECTION OF BRAKE AIR DUCT ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING FRONT WHEEL ARCH TRIM .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to CHECKING ENGINE OIL LEVEL .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
