Installing the oil filler cap
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.

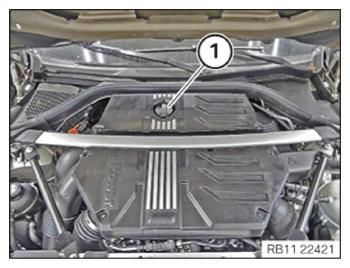

- Close oil filler cap (1) .
Follow-up work
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to RECOMMENDATION: CARRYING OUT AN ELECTRONIC OIL MEASUREMENT .
