Fastening the wiring harness section on to the right spring strut

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

• Route all cables without abrasions, do not trap and crush.

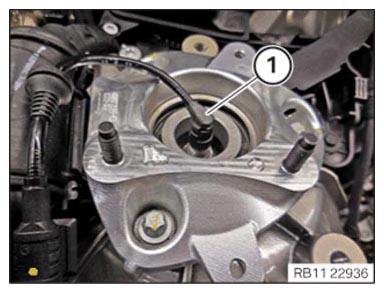

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
