Install the rear section of the front wheel arch cover on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the rear section of the front wheel arch cover
NOTE:

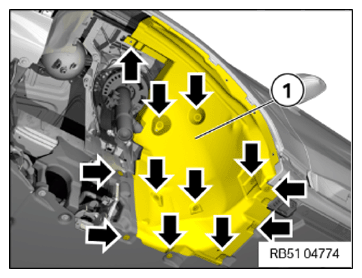

To provide a better overview: Schematic diagram with partially hidden components.
- Feed in rear section (1) of the front wheel arch cover.
- Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch cover (screws) | ||
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
