Removing the engine from the installation position

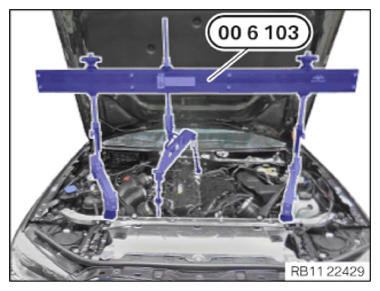

• Turn the special tool 2 361 506 (00 6 103) to lower the engine until it lies completely on the engine mounts.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread out the special tool 0 490 567 (11 0020) on the engine mounting brackets (1) and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Conduct the following operation with the assistance of a second person.

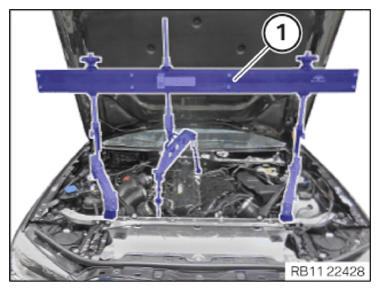

• Remove the engine bridge (1) with the help from another person.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Keep all the standard tools ready.

  Number	Description
  1	Standard torque wrench
  2	Swivel extension
  3	External Torx socket E14

  Courtesy of BMW OF NORTH AMERICA, INC.

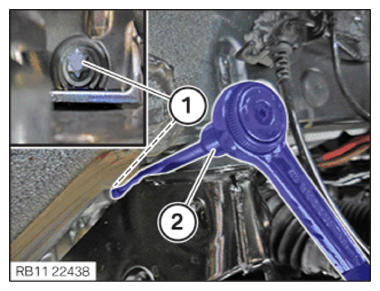

• Tighten the screw (1) of the left engine mount with a standard tool (2) at side.
  TIGHTENING TORQUES SPECIFICATION



  Engine mount to engine support bracket
  M12	Tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

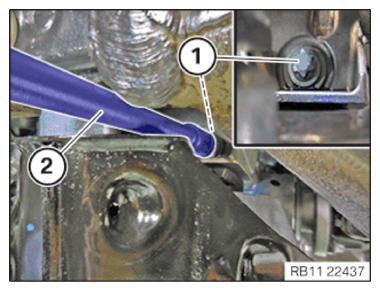

• Tighten the screw (1) of the right engine mount with the standard tool (2) at the side.
  TIGHTENING TORQUES SPECIFICATION



  Engine mount to engine support bracket
  M12	Tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE WIRING HARNESS SECTION ON TO THE RIGHT SPRING STRUT .
• Refer to FASTENING THE WIRING HARNESS SECTION ON TO THE LEFT SPRING STRUT .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
