Secure the wiring harness for the EPS on the front axle support

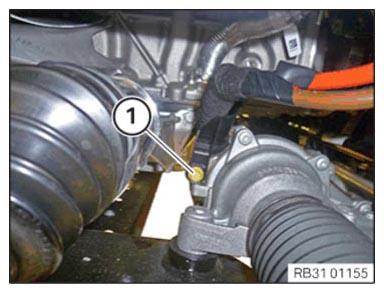

• Position the holder with the wiring harness of EPS on the steering gear.
• Screw in screw (1) several turns.

  Courtesy of BMW OF NORTH AMERICA, INC.

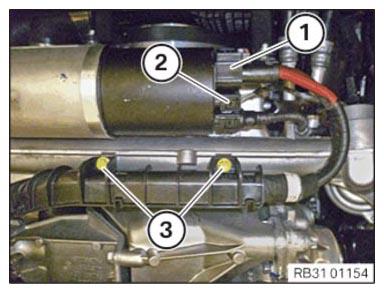

• Tighten the screws (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Holder on steering gear
  M6	Tightening torque	8 Nm

• Connect connectors (1) and (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Holder on steering gear
M6	Tightening torque	8 Nm
