Raising the front subframe

Do not damage the steering gear

NOTE: RISK OF DAMAGE
Failure to comply with the specification .
Component damage .

When lifting the front subframe, ensure sufficient distance between the steering gear (1) and the output shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.
Guide in front subframe (1) on adapter (2).

Courtesy of BMW OF NORTH AMERICA, INC.

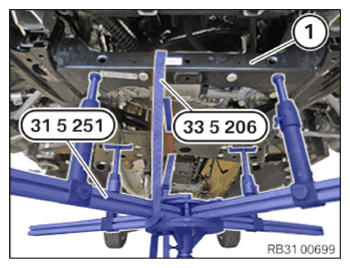

Carefully raise the front axle support (1) with the universal jack and position on the body.

Courtesy of BMW OF NORTH AMERICA, INC.
