Replacing Left Front Door

Preliminary work

• Refer to REMOVING THE MIRROR TRIANGLE COVER .
• Refer to REMOVE THE TRIM OF THE DOOR HANDLE .
• Refer to REMOVE FRONT DOOR TRIM PANEL .
• Refer to REMOVE THE OUTSIDE REARVIEW MIRROR FROM THE FRONT DOOR .
• Refer to REMOVING THE WINDOW CHANNEL STRIP ON THE OUTSIDE OF THE FRONT DOOR .
• Refer to REMOVE FRONT DOOR WINDOW GLASS .
• Refer to REMOVE FRONT INNER WINDOW CHANNEL STRIP .
• Refer to REMOVING THE COVER ON THE WINDOW FRAME .
• Refer to REMOVE THE WINDOW FRAME TRIM FROM THE FRONT DOOR .
• Refer to REMOVE THE MODULE BRACKET FROM THE FRONT DOOR .
• Refer to REMOVING RUBBER WINDOW SEAL FOR THE FRONT DOOR WINDOW GLASS .
• Refer to REMOVE THE FRONT OUTSIDE DOOR HANDLE .
• Refer to REMOVING DOOR LOCK AND OUTSIDE DOOR HANDLE SUPPORT OF DRIVER'S DOOR .
• Refer to REMOVING THE PROTECTIVE STRIP FROM THE FRONT DOOR .
• Refer to REMOVE DOOR STOP .

Prerequisite

New part is painted.

• Pull the lock (1) to the top and disconnect the plug connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

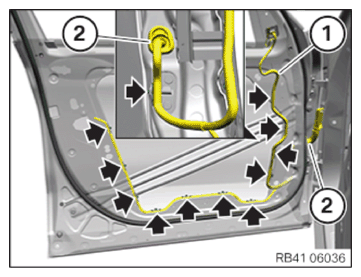

• Unclip wiring harness (1) at marked positions (arrows).
• Loosen grommet (2).
• Guide out wiring harness (1) out of the front door.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Mechanical effects.
  Paint damage.

  • Mask those working areas at risk with yellow plastic adhesive tape.
  • Remove and install heavy or bulky components with the aid of another person/other persons.
• Secure front door against falling.

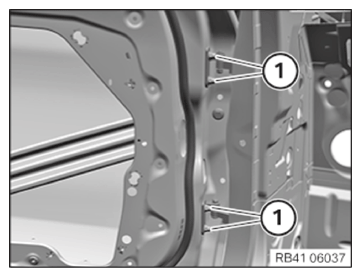

• Loosen screws (1) and remove front door.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Protect the new door from falling.
• Position new door on door hinges.

  Tighten down screws (1).

  TIGHTENING TORQUES SPECIFICATION



  Front door to door hinge
  screw
  	Tightening torque
  	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully close front door and check for bodywork contact, reposition door if necessary.
• Guide wiring harness (1) into front door.
• Mount (2) the grommet and check for correct fit (watertight).
• Clip in wiring harness (1) at marked positions (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect (1) connectors and press down locking (2) mechanism.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remount the seals (1) and (2).

  Check the seals for damage and correct fit.

  If necessary, install new seal.

  Courtesy of BMW OF NORTH AMERICA, INC.

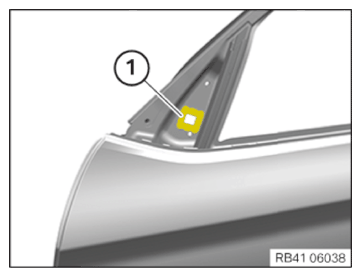

• Renew adhesive tape (1).

  Parts:  Adhesive tape

  Stick adhesive tape onto new door.

  Courtesy of BMW OF NORTH AMERICA, INC.

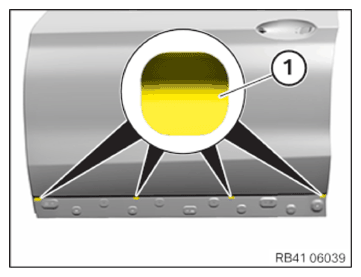

• Renew abrasion protection film (1).

  Parts:  Abrasion protection film

  Stick abrasion protection film onto new door

  Courtesy of BMW OF NORTH AMERICA, INC.

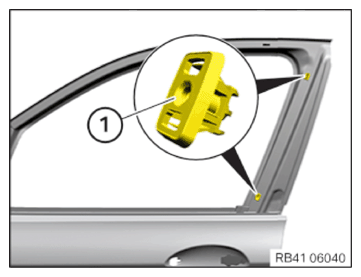

• Remount the clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

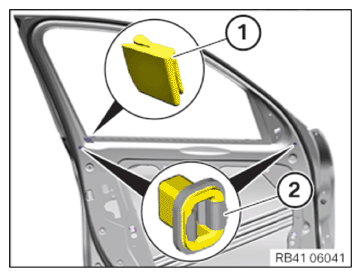

• Remount the seal (1).
• Remount plug-in fasteners (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

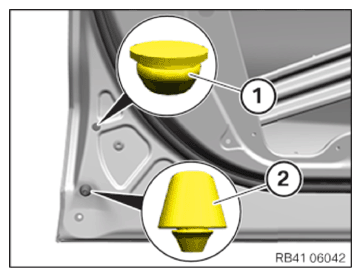

• Remount the seal plug (1).
• Remount shock absorber (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

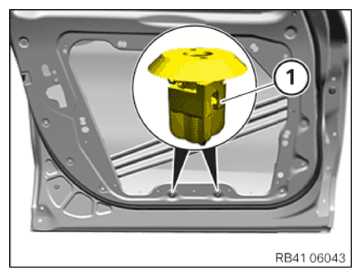

• Remount expansion nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DOORSTOP .
• Refer to BOND THE TEMPLATES FOR DOOR WEATHER STRIPS ON THE INNER DOOR PANEL .
• Refer to MOUNTING SEAL ON THE FRONT DOOR .
• Refer to INSTALLING THE PROTECTIVE STRIP ON FRONT DOOR .
• Refer to PRESERVING THE FRONT DOOR .
• Refer to INSTALLING DOOR LOCK AND OUTSIDE DOOR HANDLE SUPPORT OF DRIVER'S DOOR .
• Refer to INSTALL THE FRONT OUTSIDE DOOR HANDLE .
• Refer to INSTALLING THE RUBBER WINDOW SEAL FOR THE DOOR WINDOW GLASS, FRONT .
• Refer to INSTALL THE WINDOW FRAME TRIM OF THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME .
• Refer to INSTALL FRONT INNER WINDOW CHANNEL STRIP .
• Refer to INSTALL THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
• Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING TRIM OF DOOR HANDLE .
• Refer to MOUNTING MIRROR TRIANGLE COVER .
