Installing door lock and outside door handle support of driver's door

Guide in the door lock (1) together with the outer door handle support.
Attach wiring harness.
Connect the connector on the door lock (1).
Position screws (2) to (4).
Tighten the screws in the following sequence: (2) - (3) - (4).
TIGHTENING TORQUES SPECIFICATION

Door lock to door

screw Tightening torque
8.8 Nm

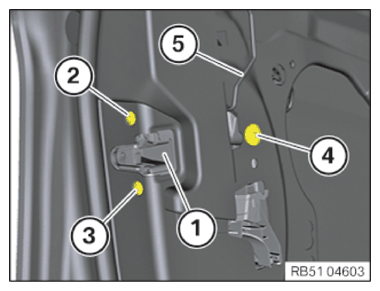

Fig 1: Door Lock And Driver'S Door Outside Door Handle Support Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Clip in locking rod (5).
Version with Automatic Soft Close system:

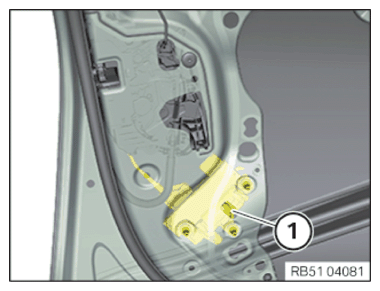

Fasten the drive for the soft-close automatic function (1) on the door.

Connect the connector to the drive for the soft-close automatic function (1).

Courtesy of BMW OF NORTH AMERICA, INC.

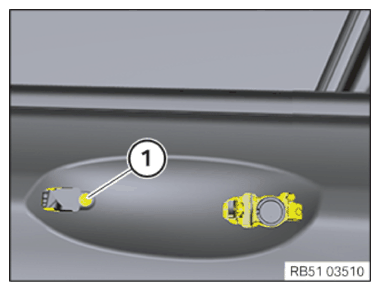

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Outside door handle support to door
screw	Tightening torque 2.6 Nm

G14461745

Courtesy of BMW OF NORTH AMERICA, INC.

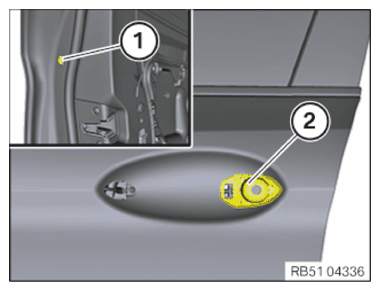

Install the attachment hood (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Attachment bell to outside door handle support
screw	Tightening torque 3 Nm

G14461746

Courtesy of BMW OF NORTH AMERICA, INC.
